In Stock Hot Product
148B5917

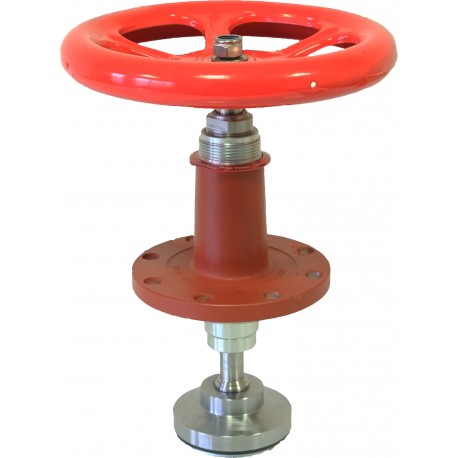

148B5917 DANFOSS REFRIGERATION SVA-S 80 TOP COMPLETE H. WHEEL
$0.00USD
4023 in stock
Key Specifications
EAN ():5702428486200
Neck ():Standard
Type ():SVA-S 80
Brand ():SVL Flexline
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428486200 |
| Neck () | Standard |
| Type () | SVA-S 80 |
| Brand () | SVL Flexline |
| Volume () | 30.092 Liter |
| Equipment () | Handwheel |
| Net weight () | 4.95 Kg |
| Serviceable () | SVL Flexline spare parts |
| Gross weight () | 8.712 Kg |
| Refrigerants () | R113R114R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Product group () | Shut-off and regulating valves |
| Packing format () | Single pack |
| Type designation () | Top Complete |
| Used for product () | SVA-S 80 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | SVA-S / SVA-L |
| Product accessories () | SVL Flexline accessories |
| Product Name Description () | Function module |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Function module, SVA-S 80, Max. Working Pressure [bar]: 52.0, Handwheel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Equipment: Handwheel, Used for product: SVA-S 80
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
