148B5908

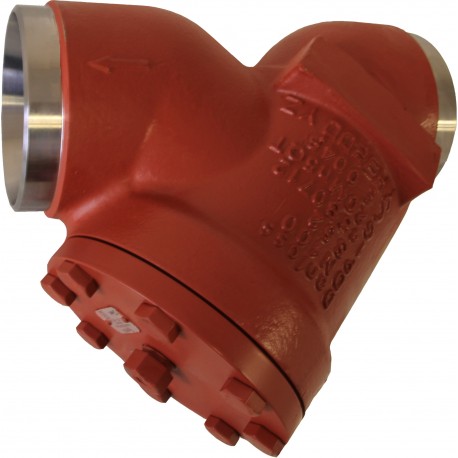

148B5908 DANFOSS REFRIGERATION Strainer housing, FIA 80
$0.00USD
3393 in stock
Key Specifications
EAN ():5702428476362
Type ():FIA 80
Brand ():SVL Flexline
Volume ():16.748 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428476362 |
| Type () | FIA 80 |
| Brand () | SVL Flexline |
| Volume () | 16.748 Liter |
| Approval () | CEUKCA |
| Direction () | Straightway |
| Equipment () | Cover |
| Net weight () | 7.6 Kg |
| Fluid Group () | 12 |
| Serviceable () | SVL Flexline spare parts |
| Colour Paint () | Reddish brown |
| Gross weight () | 10.938 Kg |
| PED category () | II |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Product group () | Strainers |
| Valve version () | Standard version |
| Packing format () | Single pack |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | FIA |
| Connection material () | Steel |
| Connection standard () | ASME B 36.10M SCHEDULE 40 |
| Product accessories () | SVL Flexline accessories |
| Product description () | Filter housing |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Strainer housing |
| Inlet connection size [in] () | 3 in |
| Inlet connection size [mm] () | 80 mm |
| Cv value [gal/min] 38 plain () | 380.85 gal/min |
| Cv value [gal/min] 72 plain () | 363.68 gal/min |
| Kv value [m3/h] µ150 plain () | 80 m³/h |
| Kv value [m3/h] µ250 plain () | 82.6 m³/h |
| Kv value [m3/h] µ500 plain () | 86.5 m³/h |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [in] () | 3 in |
| Outlet connection size [mm] () | 80 mm |
| Quantity per packing format () | 1 pc |
| Cv value [gal/min] 100 plain () | 352.23 gal/min |
| Max. Working Pressure [psig] () | 754 psig |
| Cv value [gal/min] 38 pleated () | 497.96 gal/min |
| Cv value [gal/min] 72 pleated () | 475.51 gal/min |
| Kv value [m3/h] µ150 pleated () | 104.6 m³/h |
| Kv value [m3/h] µ250 pleated () | 108 m³/h |
| Kv value [m3/h] µ500 pleated () | 113.1 m³/h |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| Cv value [gal/min] 100 pleated () | 460.54 gal/min |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld, Max. Working Pressure [bar]: 52.0
