In Stock Hot Product
148B5827

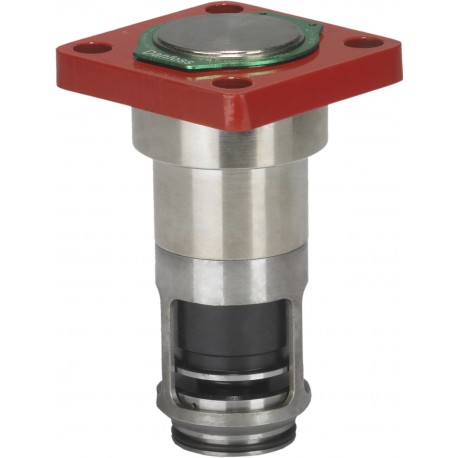

148B5827 DANFOSS REFRIGERATION CHV-X 65 top complete
$0.00USD
4530 in stock
Key Specifications
EAN ():5702428486187
Type ():CHV-X 65
Brand ():SVL Flexline
Volume ():1.875 Liter
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428486187 |
| Type () | CHV-X 65 |
| Brand () | SVL Flexline |
| Volume () | 1.875 Liter |
| Net weight () | 1.855 Kg |
| Serviceable () | SVL Flexline spare parts |
| Gross weight () | 1.971 Kg |
| Refrigerants () | R134aR22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452C |
| Product group () | Check valves |
| Packing format () | Single pack |
| Type designation () | Top Complete |
| Used for product () | CHV-X 65 |
| EU RoHS compliance () | No - out of scope |
| Parts Program name () | CHV-X |
| Product accessories () | SVL Flexline accessories |
| Product Name Description () | Function module |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Function module, CHV-X 65, SVL Flexline, Max. Working Pressure [bar]: 52.0
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Used for product: CHV-X 65
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
