148B5824

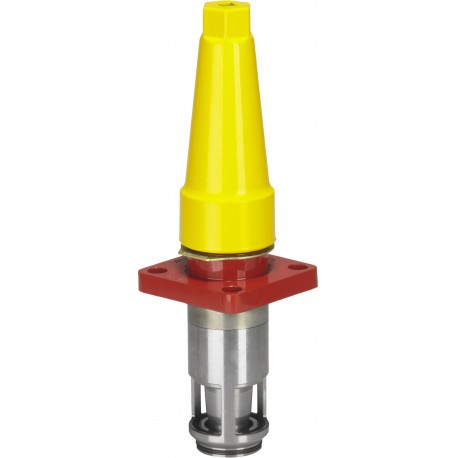

148B5824 DANFOSS REFRIGERATION REG-SB 65 top complete
$0.00USD
4609 in stock
Key Specifications
EAN ():5702428486163
Neck ():Standard
Type ():REG-SB 65
Brand ():SVL Flexline
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428486163 |
| Neck () | Standard |
| Type () | REG-SB 65 |
| Brand () | SVL Flexline |
| Volume () | 12.933 Liter |
| Equipment () | Cap |
| Net weight () | 2.802 Kg |
| Serviceable () | SVL Flexline spare parts |
| Gross weight () | 4.761 Kg |
| Refrigerants () | R134aR22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R600R600aR717R744R507AR1234yfR1234ze(E)R125R152aR227eaR236faR245faR32R407HR413AR417AR422AR422BR422DR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR512AR513AR513BR515AR515BR516AR170R452C |
| Product group () | Shut-off and regulating valves |
| Packing format () | Single pack |
| Parts included () | 1 gasket4 boltsTop part |
| Flow area [in2] () | 3.065 in² |
| Flow area [mm2] () | 1978 mm² |
| Type designation () | Top Complete |
| Used for product () | REG-SB 65 |
| EU RoHS compliance () | Yes with exemptions |
| Parts Program name () | REG-SA / REG-SB |
| Product accessories () | SVL Flexline accessories |
| Product Name Description () | Function module |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [mm] () | 65 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Function module, REG-SB 65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 52.0, Used for product: REG-SB 65, Equipment: Cap
