148B5802

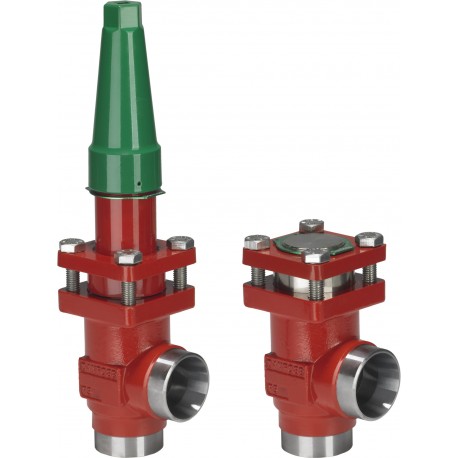

148B5802 DANFOSS REFRIGERATION Check & stop valve, SCA-X 65
$0.00USD
3639 in stock
Key Specifications
EAN:5702428478748
Brand:SVL Flexline
Approval:CE
Category:II
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428478748 |
| Brand | SVL Flexline |
| Approval | CE |
| Category | II |
| Direction | Angleway |
| Equipment | Cap |
| Net weight | 6.99 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 7.55 Kg |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.62 psi |
| Product name | Check & stop valve |
| Product type | SCA-X 65 |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R600R600aR717R744 |
| Product Group | Check valves |
| Valve version | Standard version |
| Packing format | Single pack |
| Kv value [m³/h] | 72 m3/h |
| Cv value [gal/min] | 83.52 gal/min |
| Parts Program name | SCA-X |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 40 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Product family name | SCA |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| System line application | Common liquid lineDischarge lineGas bypass lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTSuction lineSuction line MTWet return lineSuction line LT |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
Check and stop valve, SCA-X 65, SVL Flexline, Steering: Angled pitch, 65.0 mm, Connection standard: ASME B 36.10M SCHEDULE 40, Max. working pressure [bar]: 52.0
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
