148B5578

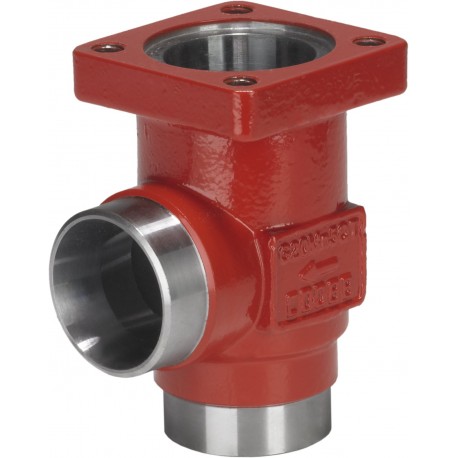

148B5578 DANFOSS REFRIGERATION Multifunction valve body, SVL 32
$0.00USD
3465 in stock
Key Specifications
EAN:5702428485579
Brand:SVL Flexline
Approval:CE
Category:II
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428485579 |
| Brand | SVL Flexline |
| Approval | CE |
| Category | II |
| Direction | Angleway |
| Net weight | 0.01 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Gross weight | 1.78 Kg |
| Product name | Multifunction valve body |
| Product type | SVL 32 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Body material | Steel |
| Product Group | Multifunction valves |
| Flow direction | Bi-flow |
| Packing format | Single pack |
| Parts Program name | CHV-XFIASCA-XSVA-S / SVA-LREG-SA /REG-SB |
| Connection material | Steel |
| Connection standard | ASME B 36.10M SCHEDULE 80 |
| Product accessories | SVL Flexline accessories |
| Product description | Valve house |
| Product family name | CHVREG angleREG straightSCASVA angleSVA straightFIA angle plainFIA angle pleatedFIA straight plainFIA straight pleated |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| System line application | Common liquid lineDischarge lineGas bypass lineHot gas defrost drain lineHot gas defrost lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTMain hot gas defrost lineSuction lineSuction line LTSuction line MTWet return line |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 1 1/4 in |
| Inlet connection size [mm] | 32 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 1 1/4 in |
| Outlet connection size [mm] | 32 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
SVL 32 ANSI Valve housing ANG PS52
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
