148B5468

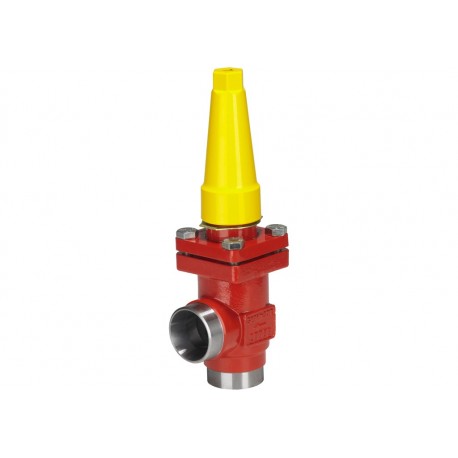

148B5468 DANFOSS REFRIGERATION Check & stop valve
$0.00USD
4572 in stock
Key Specifications
EAN:5702428820288
Neck:Short
Brand:SVL Flexline
Approval:CECRNEACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428820288 |
| Neck | Short |
| Brand | SVL Flexline |
| Approval | CECRNEACLLC CDC TYSK |
| Category | Art. 3, par. 3 |
| Direction | Angleway |
| Equipment | Cap |
| Net weight | 1.59 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 3.18 Kg |
| Product name | Check & stop valve |
| Product type | SCA-X 25 |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R600R600aR717R744 |
| Body material | Steel |
| Product Group | Check valves |
| Valve version | Standard version |
| Packing format | Single pack |
| Kv value [m³/h] | 20 m3/h |
| Cv value [gal/min] | 23.2 gal/min |
| Parts Program name | REG-SAREG-SB |
| Connection material | Steel |
| Connection standard | EN 10220 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Check Valve |
| Inlet connection type | Butt weld |
| Outlet connection type | Butt weld |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 1 in |
| Inlet connection size [mm] | 25 mm |
| Max. Working Pressure [bar] | 65 bar |
| Outlet connection size [in] | 1 in |
| Outlet connection size [mm] | 25 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 943 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -10 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | 14 °F |
Product Description
SCA-X 25 D Angel Stop Valve PS65
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
