148B5304

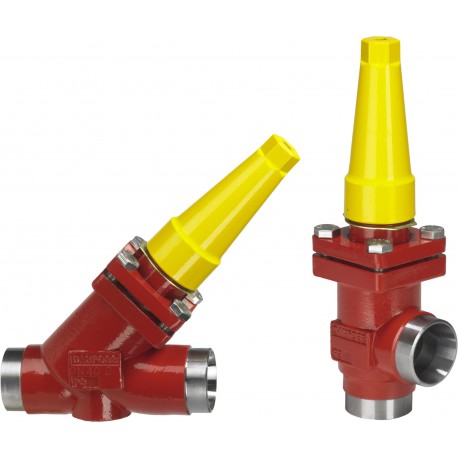

148B5304 DANFOSS REFRIGERATION Hand operated regulating valve, REG-SA 20
$0.00USD
4930 in stock
Key Specifications
EAN:5702428473699
Neck:Short
Brand:SVL Flexline
Category:Art. 3, par. 3
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428473699 |
| Neck | Short |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Direction | Angleway |
| Equipment | Cap |
| Net weight | 1.68 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 1.9 Kg |
| Product name | Hand operated regulating valve |
| Product type | REG-SA 20 |
| Refrigerants | R134aR170R22R290R401AR402AR404AR407AR407BR407CR407FR409AR410AR421AR502R507R600R600aR717R744 |
| Body material | Steel |
| Product Group | Shut-off and regulating valves |
| Valve version | Standard version |
| Packing format | Single pack |
| Flow area [in2] | 0.056 in2 |
| Flow area [mm2] | 36 mm2 |
| Kv value [m³/h] | 1.5 m3/h |
| Cv value [gal/min] | 1.75 gal/min |
| Parts Program name | REG-SA / REG-SB |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Product accessories | SVL Flexline accessories |
| Product description | Hand Regulating Valve |
| Product family name | REG angle |
| Inlet connection type | Socket weld |
| Outlet connection type | Socket weld |
| System line application | Common liquid lineGas bypass lineHot gas defrost drain lineHot gas defrost lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTMain hot gas defrost lineSuction line LTSuction line MT |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
Manually operated regulating valve, REG-SA 20, Steel
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
