148B5222

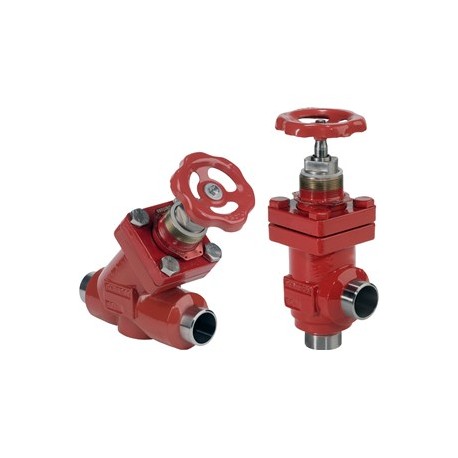

148B5222 DANFOSS REFRIGERATION Shut-off valve, SVA-S 15
$0.00USD
4036 in stock
Key Specifications
EAN:5702428467100
Neck:Short
Brand:SVL Flexline
Category:Art. 3, par. 3
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428467100 |
| Neck | Short |
| Brand | SVL Flexline |
| Category | Art. 3, par. 3 |
| Direction | Angleway |
| Equipment | Handwheel |
| Net weight | 1.58 Kg |
| Fluid Group | I |
| Serviceable | SVL Flexline spare parts |
| Colour Paint | Reddish brown |
| Gross weight | 1.9 Kg |
| Product name | Shut-off valve |
| Product type | SVA-S 15 |
| Refrigerants | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R507R513AR600R600aR717R744RE170 |
| Body material | Steel |
| Product Group | Shut-off and regulating valves |
| Valve version | Standard version |
| Flow direction | Bi-flow |
| Packing format | Single pack |
| Kv value [m³/h] | 7 m3/h |
| Cv value [gal/min] | 8.12 gal/min |
| Parts Program name | SVA-S / SVA-L |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Product accessories | SVL Flexline accessories |
| Product description | Stop Valve |
| Product family name | SVA angle |
| Inlet connection type | Socket weld |
| Outlet connection type | Socket weld |
| System line application | Common liquid lineDischarge lineLiquid feed lineLiquid lineLiquid line LTLiquid line MTSuction lineSuction line MTWet return lineHot gas defrost drain lineHot gas defrost lineMain hot gas defrost lineSuction line LT |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection size [in] | 1/2 in |
| Inlet connection size [mm] | 15 mm |
| Max. Working Pressure [bar] | 52 bar |
| Outlet connection size [in] | 1/2 in |
| Outlet connection size [mm] | 15 mm |
| Quantity per packing format | 1 pc |
| Max. Working Pressure [psig] | 754 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -76 °F |
Product Description
Shut-off valve, SVA-S 15, Steel, Max. working pressure [psig]: 754
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
