148B4228

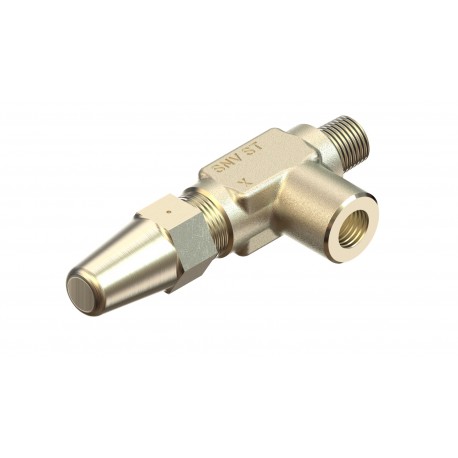

148B4228 DANFOSS REFRIGERATION Gauge valve
$0.00USD
3090 in stock
Key Specifications
EAN ():5702428177177
Type ():SNV-ST
Volume ():0.689 Liter
Approval ():EACLLC CDC TYSKTÜV
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428177177 |
| Type () | SNV-ST |
| Volume () | 0.689 Liter |
| Approval () | EACLLC CDC TYSKTÜV |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 0.39 Kg |
| Fluid Group () | 1 |
| Serviceable () | SNV spare parts |
| Colour Paint () | Cr3 / TLP |
| Gross weight () | 0.428 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Body material () | Steel |
| Product group () | Shut-off and regulating valves |
| Valve version () | Standard version |
| Flow direction () | Bi-flow |
| Packing format () | Industrial pack |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Connection standard () | ISO 7-1 |
| Product accessories () | SNV accessories |
| Product description () | Stop Needle Valve |
| Inlet connection type () | R |
| Outlet connection type () | Rc |
| Inlet Internal/External () | External |
| Outlet Internal/External () | Internal |
| Product Name Description () | Gauge valve |
| Inlet connection size [in] () | 3/8 |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [in] () | 1/4 |
| Quantity per packing format () | 30 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Gauge valve, SNV-ST
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: R, Outlet connection type: Rc
