In Stock Hot Product
148B3853

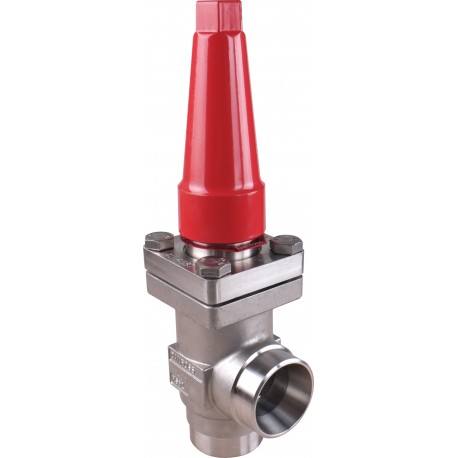

148B3853 DANFOSS REFRIGERATION Shut-off valve
$0.00USD
3901 in stock
Key Specifications
EAN ():5702428178396
Type ():SVA-SS 50
Volume ():5.899 Liter
Approval ():CELLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428178396 |
| Type () | SVA-SS 50 |
| Volume () | 5.899 Liter |
| Approval () | CELLC CDC EURO-TYSKUKCA |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 3.78 Kg |
| Fluid Group () | 12 |
| Gross weight () | 3.826 Kg |
| PED category () | II |
| Refrigerants () | R113R114R125R134aR152aR22R23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR452BR454BR454CR455AR502R503R513AR413AR454AR227eaR507A |
| Product group () | Shut-off and regulating valves |
| Valve version () | Stainless steel |
| Packing format () | Single pack |
| Kv value [m³/h] () | 80 m³/h |
| Cv value [gal/min] () | 92.8 gal/min |
| EU RoHS compliance () | No - out of scope |
| Connection standard () | EN 10220 |
| Product description () | Stop Valve |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Product Name Description () | Shut-off valve |
| Inlet connection size [in] () | 2 in |
| Inlet connection size [mm] () | 50 mm |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [in] () | 2 in |
| Outlet connection size [mm] () | 50 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Shut-off valve, SVA-SS 50, Max. Working Pressure [psig]: 754
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
