148B3828

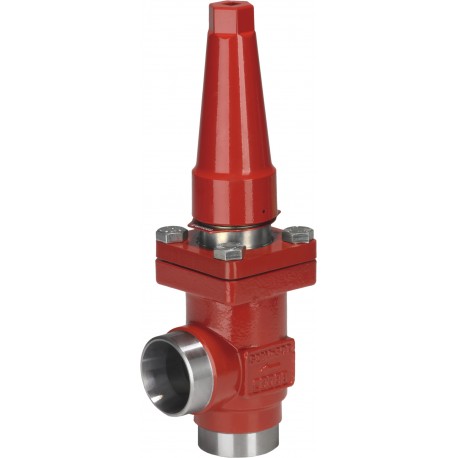

148B3828 DANFOSS REFRIGERATION Shut-off valve
$0.00USD
4837 in stock
Key Specifications
EAN ():5702428341868
Type ():SVA-ST 15
Volume ():1.874 Liter
Approval ():LLC CDC EURO-TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428341868 |
| Type () | SVA-ST 15 |
| Volume () | 1.874 Liter |
| Approval () | LLC CDC EURO-TYSK |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 1.568 Kg |
| Fluid Group () | 12 |
| Colour Paint () | Reddish brown |
| Gross weight () | 1.7 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R113R114R125R134aR152aR22R23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR452BR454BR454CR455AR502R503R513AR413AR454AR227eaR507A |
| Product group () | Shut-off and regulating valves |
| Valve version () | Standard version |
| Packing format () | Single pack |
| Kv value [m³/h] () | 7 m³/h |
| Cv value [gal/min] () | 8.12 gal/min |
| Connection standard () | R |
| Product description () | Stop Valve |
| Inlet connection type () | G |
| Outlet connection type () | G |
| Inlet Internal/External () | Internal |
| Outlet Internal/External () | Internal |
| Product Name Description () | Shut-off valve |
| Inlet connection size [in] () | 1/2 |
| Max. Working Pressure [bar] () | 40 bar |
| Outlet connection size [in] () | 1/2 |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Shut-off valve, SVA-ST 15, Max. Working Pressure [psig]: 580
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: G, Outlet connection type: G, Equipment: Cap
