148B3772

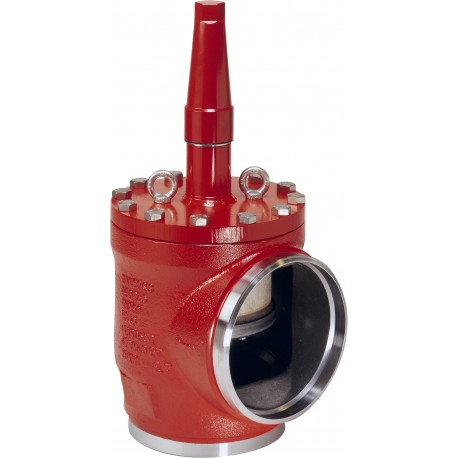

148B3772 DANFOSS REFRIGERATION Shut-off valve, SVA-DL 300
$0.00USD
4864 in stock
Key Specifications
EAN ():5702428179164
Type ():SVA-DL 300
Volume ():739.2 Liter
Approval ():CELLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428179164 |
| Type () | SVA-DL 300 |
| Volume () | 739.2 Liter |
| Approval () | CELLC CDC EURO-TYSKUKCA |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 161.92 Kg |
| Fluid Group () | 12 |
| Colour Paint () | Reddish brown |
| Gross weight () | 205.5 Kg |
| PED category () | IV |
| Refrigerants () | R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507AR1150R245faR413AR442AR447BR452BR454AR454CR463AR512AR513BR515AR515BR516AR508B |
| Product group () | Shut-off and regulating valves |
| Valve version () | Delta Pressure Low |
| Packing format () | Single pack |
| Kv value [m³/h] () | 1610 m³/h |
| Cv value [gal/min] () | 1867.6 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection standard () | ASME B 36.10M SCHEDULE 40 |
| Product description () | Stop Valve |
| Inlet connection type () | Butt weld |
| Outlet connection type () | Butt weld |
| Product Name Description () | Shut-off valve |
| Inlet connection size [in] () | 12 in |
| Inlet connection size [mm] () | 300 mm |
| Max. Working Pressure [bar] () | 40 bar |
| Outlet connection size [in] () | 12 in |
| Outlet connection size [mm] () | 300 mm |
| Quantity per packing format () | 1 pc |
| Max. Working Pressure [psig] () | 580 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
SVA-DL 300 A ANG STOP VALVE CAP
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Butt weld, Outlet connection type: Butt weld, Equipment: Cap
