148B3740

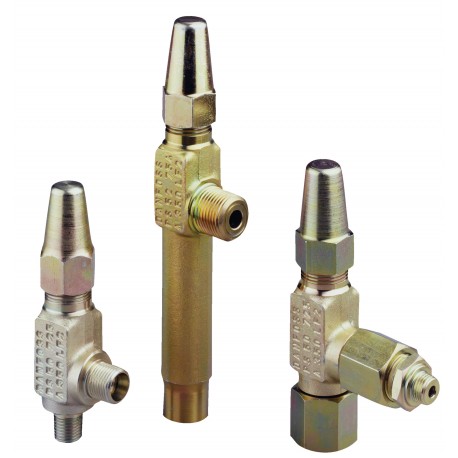

148B3740 DANFOSS REFRIGERATION Gauge valve
$0.00USD
4644 in stock
Key Specifications
EAN ():5702428179379
Type ():SNV-ST
Volume ():1.165 Liter
Approval ():EACLLC CDC TYSKTÜV
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428179379 |
| Type () | SNV-ST |
| Volume () | 1.165 Liter |
| Approval () | EACLLC CDC TYSKTÜV |
| Direction () | Angleway |
| Equipment () | Cap |
| Net weight () | 0.37 Kg |
| Fluid Group () | 1 |
| Serviceable () | SNV spare parts |
| Colour Paint () | Cr3 / TLP |
| Gross weight () | 0.432 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R113R114R1150R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR170R22R227eaR23R236faR245faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR413AR417AR421AR422AR422BR422DR427AR438AR442AR444BR447AR447BR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR463AR502R503R507AR512AR513AR513BR515AR515BR516AR600R600aR717R744RE170R508B |
| Body material () | Steel |
| Product group () | Shut-off and regulating valves |
| Valve version () | Standard version |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Identical product () | 148B4177 |
| EU RoHS compliance () | No - out of scope |
| Connection material () | Steel |
| Connection standard () | DIN 3861DIN 3901 |
| Product accessories () | SNV accessories |
| Product description () | Stop Needle Valve |
| Inlet connection type () | Cutting ring |
| Outlet connection type () | Cutting ring |
| Product Name Description () | Gauge valve |
| Inlet connection size [mm] () | 10 mm |
| Max. Working Pressure [bar] () | 52 bar |
| Outlet connection size [mm] () | 10 mm |
| Quantity per packing format () | 12 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -60 °C |
| Temperature range [°F] [max] () | 302 °F |
| Temperature range [°F] [min] () | -76 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
SNV-ST CD10-CD10 STOP NEEDLE VALVE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Cutting ring, Outlet connection type: Cutting ring
