145G0224

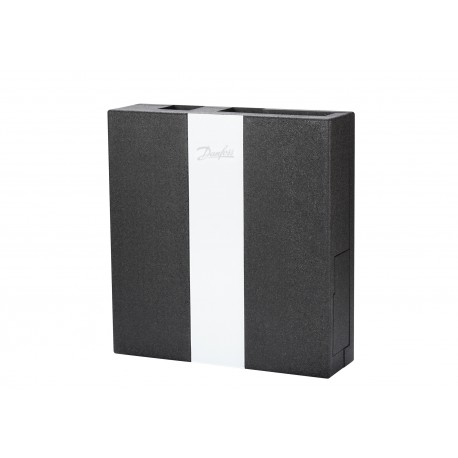

145G0224 DANFOSS HEATING Akva Lux High Flow DHW XB37H-30 PTC
$0.00USD
3213 in stock
Key Specifications
EAN ():5702424654030
Type ():Akva Lux II
Volume ():75 Liter
Net weight ():17.5 Kg
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424654030 |
| Type () | Akva Lux II |
| Volume () | 75 Liter |
| Net weight () | 17.5 Kg |
| Description () | Akva Lux WSS High Flow DHW XB37H-30 PTC |
| DH pipe size () | Ø18 |
| DHW HEX type () | XB37 |
| Gross weight () | 18 Kg |
| HE pipe size () | Ø18 |
| DHW pipe size () | Ø18 |
| Product group () | Small Stations |
| DHW circulation () | Extra |
| DHW Control type () | Flow/thermostatic |
| HEX heating type () | Brazed |
| Heating HEX type () | XB37H-1 30 |
| DHW capacity [kW] () | 78 kW |
| Station size type () | Type 1 |
| DH connection size () | G3/4" |
| DH connection type () | G int. Thread |
| HE connection size () | 3/4" |
| HE connection type () | G int. Thread |
| Package depth [mm] () | 150 mm |
| Package width [mm] () | 580 mm |
| DHW connection size () | G3/4" |
| DHW connection type () | G int. Thread |
| DHW controller name () | PTC |
| Package height [mm] () | 620 mm |
| Connection direction () | Bottom |
| Heating control type () | Thermostatic/Electronic |
| Depth with cover [mm] () | 200 mm |
| Additional information () | DHW |
| Height with cover [mm] () | 740 mm |
| Depth without cover [mm] () | 150 mm |
| Heating circuit - control () | Thermostat |
| Height without cover [mm] () | 616 mm |
| HEX heating brazing material () | Copper |
| Pressure nominal primary [bar] () | 10 bar |
| DCW static pressure [bar] [Min] () | 2 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Pressure nominal secondary [bar] () | 10 bar |
| Supply temperature construction [˚C] () | 95 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Akva Lux II, Type 1, 10 bar, 95 °C, DHW controller name: PTC, Thermostat
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Akva Lux WSS High Flow DHW XB37H-30 PTC
