In Stock Hot Product
134N7399

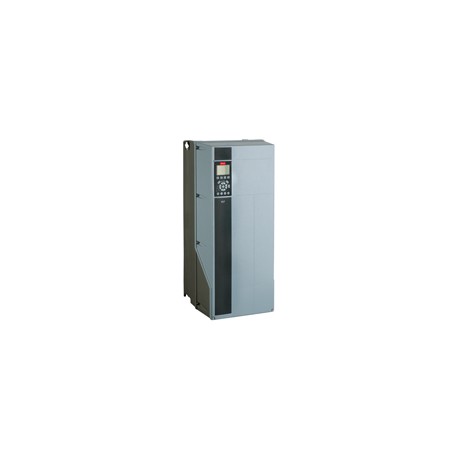

134N7399 DANFOSS DRIVES VLT HVAC Drive FC-102 45 KW / 60 HP, 380-480 VAC, No brake chopper, IP55 / Type12 Ba..
$0.00USD
3861 in stock
Key Specifications
LCP:(X) No Loc. Cont. Panel
Phase:(T) Three phase
Series:102
Vendor:Factory DK
Supplier Information
DANFOSS DRIVES
Products: 56123
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LCP | (X) No Loc. Cont. Panel |
| Phase | (T) Three phase |
| Series | 102 |
| Vendor | Factory DK |
| A Option | (AX) No A Option |
| B Option | (BX) No B Option |
| D Option | (DX) No D option |
| C1 Option | (X) No C1 option |
| Enclosure | (P55) IP55 / Type12 Backplate |
| Frame Size | C1 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Coating PCB | (X) Not coated PCB |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Mains Option | (X) No Mains Option |
| Power Rating | (P45K) 45 KW / 60 HP |
| C0 Option MCO | (CX) No C0 option |
| Mains Voltage | (4) 380 - 480 VAC |
| Product Group | (FC-) VLT HVAC Drive FC- |
| Vendor Region | Southern Europe |
| Characteristic | Value |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-102P45KT4P55H2XXX |
| Typecode Part 2 | XXXSXXXXAXBXCXXXXDX |
| Software Release | (SXXX) Latest release std. SW. |
| Brake - Safe Stop | (X) No brake chopper |
| C Option Software | (XX) No software option |
| Sales Organization | 2200 |
| Software Language Pack | (X) Standard Language Pack |
| Calculated Gross Weight | 45.500 |
| Calculated Net Weight [kg] | 45.200 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
