131L9540

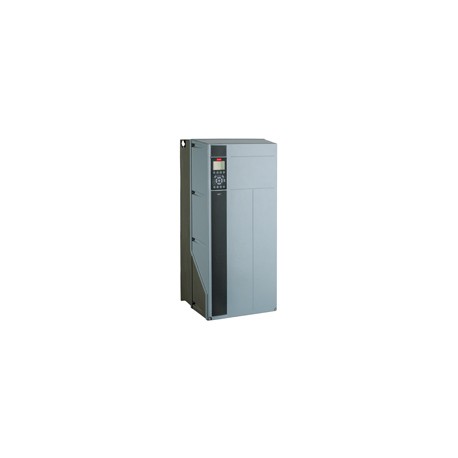

131L9540 DANFOSS DRIVES VLT AQUA Drive FC-202 90 KW / 125 HP, 380 480 VAC, IP66 / NEMA 4X, RFI Class A2 (C3)..
$0.00USD
4438 in stock
Key Specifications
LCP:(G) Graphical Loc. Cont. Panel
Phase:(T) Three phase
Series:202
Vendor:Factory DK
Supplier Information
DANFOSS DRIVES
Products: 56123
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| LCP | (G) Graphical Loc. Cont. Panel |
| Phase | (T) Three phase |
| Series | 202 |
| Vendor | Factory DK |
| A Option | (A0) PROFIBUS DP MCA 101 |
| B Option | (BK) MCB-101 General purp. I/O |
| D Option | (D0) MCB-107 24V DC backup |
| C1 Option | (X) No C1 option |
| Enclosure | (E66) IP66 / NEMA 4X |
| Frame Size | C2 |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Coating PCB | (X) Not coated PCB |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Mains Option | (X) No Mains Option |
| Power Rating | (P90K) 90 KW / 125 HP |
| C0 Option MCO | (CX) No C0 option |
| Mains Voltage | (4) 380 - 480 VAC |
| Product Group | (FC-) VLT AQUA Drive FC- |
| Vendor Region | Southern Europe |
| Characteristic | Value |
| Product Catalog | Global (Standard) |
| Typecode Part 1 | FC-202P90KT4E66H2XGX |
| Typecode Part 2 | XXXSXXXXA0BKCXXXXD0 |
| Software Release | (SXXX) Latest release std. SW. |
| Brake - Safe Stop | (X) No brake chopper |
| C Option Software | (XX) No software option |
| Sales Organization | 2200 |
| Software Language Pack | (X) Standard Language Pack |
| Calculated Gross Weight | 65.300 |
| Calculated Net Weight [kg] | 65.000 |
Product Description
Frequency Converters. FC-202P90KT4E66H2XGXXXXSXXXXA0BKCXXXXD0. VLT® AQUA Drive FC 200Advanced Version. 90kW, Three-phase. 380-480V AC, IP66. RFI class A2 (C3). No braking chopper. Cont. panel local gr
