130B5284

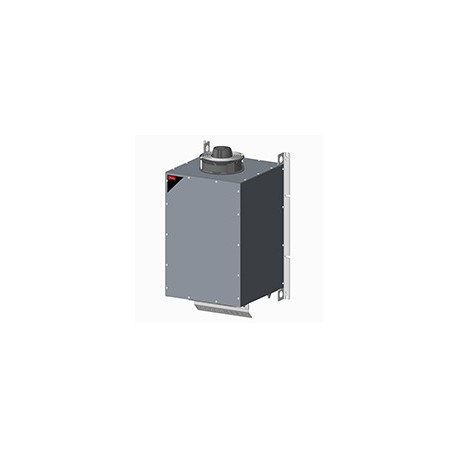

130B5284 AHF-DA-036-690-50-20-A DANFOSS DRIVES VLT Advanced Harmonic Filter AHF-DA-036-690-50-20-A
$0.00USD
3090 in stock
Key Specifications
EAN ():5710107617487
Volume ():79.804 l
Net weight ():52 kg
Gross weight ():52 kg
Supplier Information
DANFOSS DRIVES
Products: 56123
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710107617487 |
| Volume () | 79.804 l |
| Net weight () | 52 kg |
| Gross weight () | 52 kg |
| Phase (POWER OPTIONS FC 100 SERIES) | (T) Three phase |
| Phase (POWER OPTIONS FC 200 SERIES) | (T) Three phase |
| Phase (POWER OPTIONS FC 300 SERIES) | (T) Three phase |
| Product Series (DD Power Options Class) | VLT® Harmonic Filter 10% |
| Power Rating (POWER OPTIONS FC 100 SERIES) | (P30K) 30 KW / 40 HP |
| Power Rating (POWER OPTIONS FC 200 SERIES) | (P30K) 30 KW / 40 HP(P22K) 22 KW / 30 HP |
| Power Rating (POWER OPTIONS FC 300 SERIES) | (P30K) 30 KW / 40 HP(P22K) 22 KW / 30 HP |
| Mains Voltage (POWER OPTIONS FC 100 SERIES) | (6) 525 - 600 VAC(7) 525 - 690 VAC * |
| Mains Voltage (POWER OPTIONS FC 200 SERIES) | (6) 525 - 600 VAC(7) 525 - 690 VAC * |
| Mains Voltage (POWER OPTIONS FC 300 SERIES) | (6) 525 - 600 VAC(7) 525 - 690 VAC * |
Product Description
AHF-DA-036-690-50-20-A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VLT® Advanced Harmonic Filter - AHF 010The Danfoss Advanced Harmonic Filter is a compact passive harmonicfilter specially designed to match the Danfoss frequency convertersVLT® AutomationDrive, VLT® AQUA Drive and VLT® HVAC/R Drives.The program offers two variants, AHF 005 and AHF 010.Connected infront of the Danfoss VLT® frequency converter, the harmonic currentdistortion on the line is reduced to 5% or 10% at nominal load.Specifications:Line voltage: 690VLine frequency: 50HzNominal current: 36ATHDi Less than 10%Cooling concept: Integrated fan with variable speedEfficiency: > 98 %Ambient temperature: 5-45 deg CEnclosure type: X4-V3 IP20 efEnclosure degree: IP20 (IP21 / NEMA 1 optional)Dimensions:Height: 621mmWidth: 378mmDepth: 338mmAccessories:IP21 / NEMA1 Kit for AHF3 X4 : 175U3277IP21/NEMA1 Kit for AHF3 X4 with capacitor disconnect option:175U5906Backplate for AHF X4 : 130B3286
