In Stock Hot Product
130B2268

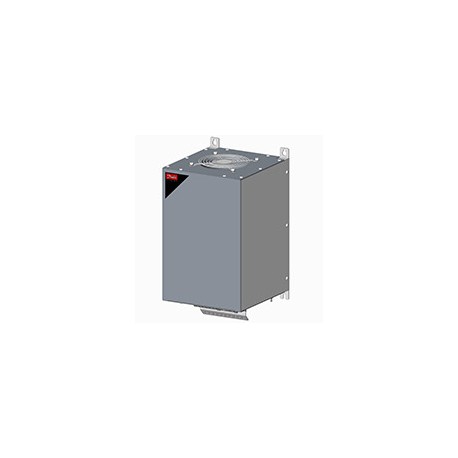

130B2268 AHF-DA-022-380-60-20-A DANFOSS DRIVES VLT Advanced Harmonic Filter AHF-DA-022-380-60-20-A
$0.00USD
3237 in stock
Key Specifications
EAN ():5710107609543
Volume ():132 l
Net weight ():21 kg
Gross weight ():21 kg
Supplier Information
DANFOSS DRIVES
Products: 56123
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710107609543 |
| Volume () | 132 l |
| Net weight () | 21 kg |
| Gross weight () | 21 kg |
| Phase (POWER OPTIONS FC 100 SERIES) | (T) Three phase |
| Phase (POWER OPTIONS FC 200 SERIES) | (T) Three phase |
| Phase (POWER OPTIONS FC 300 SERIES) | (T) Three phase |
| Product Series (DD Power Options Class) | VLT® Harmonic Filter 10% |
| Power Rating (POWER OPTIONS FC 100 SERIES) | (P11K) 11 KW / 15 HP |
| Power Rating (POWER OPTIONS FC 200 SERIES) | (P11K) 11 KW / 15 HP |
| Power Rating (POWER OPTIONS FC 300 SERIES) | (P11K) 11 KW / 15 HP |
| Mains Voltage (POWER OPTIONS FC 100 SERIES) | (4) 380 - 480 VAC |
| Mains Voltage (POWER OPTIONS FC 200 SERIES) | (4) 380 - 480 VAC |
| Mains Voltage (POWER OPTIONS FC 300 SERIES) | (4) 380 - 480 VAC(5) 380 - 500 VAC |
Product Description
AHF-DA-022-380-60-20-A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
VLT® Advanced Harmonic Filter - AHF 010The Danfoss Advanced Harmonic Filter is a compact passive harmonicfilter specially designed to match the Danfoss frequency convertersVLT® AutomationDrive, VLT® AQUA Drive and VLT® HVAC/R Drives.The program offers two variants, AHF 005 and AHF 010.Connected infront of the Danfoss VLT® frequency converter, the harmonic currentdistortion on the line is reduced to 5% or 10% at nominal load.Specifications:Line voltage: 380-415VLine frequency: 60HzNominal current: 22ATHDi Less than 10%Cooling concept: Integrated fan with variable speedEfficiency: > 98 %Ambient temperature: 5-45 deg CEnclosure type: X2-V3 IP20 ifEnclosure degree: IP20 (IP21 / NEMA 1 optional)Dimensions:Height: 434mmWidth: 238mmDepth: 248mmAccessories:IP21 / NEMA1 Kit for AHF3 X2 : 175U3275IP21/NEMA1 Kit for AHF3 X2 with capacitor disconnect option:175U5904Backplate for AHF X2 : 130B3284
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
