121U9008

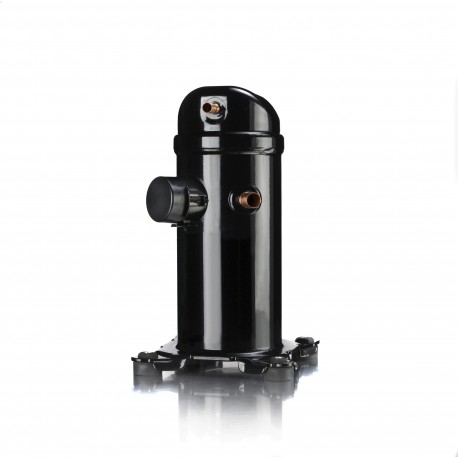

121U9008 DANFOSS REFRIGERATION Scroll compressor, HHP019T5LP6
$0.00USD
4046 in stock
Key Specifications
EAN ():5702428378680
LRA ():69 A
MCC ():24 A
RLA ():17.1 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428378680 |
| LRA () | 69 A |
| MCC () | 24 A |
| RLA () | 17.1 A |
| Type () | HHP019 |
| Phase () | 1 |
| Colour () | Black |
| Family () | HHP |
| Volume () | 40.902 Liter |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Economizer () | No |
| Net weight () | 30.95 Kilogram |
| Technology () | Scroll |
| Width [mm] () | 239 mm |
| Description () | HHP019T5 |
| Length [mm] () | 239 mm |
| Shipped oil () | Initial oil charge |
| CE evaluated () | Yes |
| Gross weight () | 32.165 Kilogram |
| Model number () | HHP019T5LP6 |
| Refrigerants () | R407C |
| UL evaluated () | Yes |
| Diameter [mm] () | 165 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 160HV |
| Product group () | Hermetic compressors |
| Segment usage () | Heating |
| Drawing number () | 0XC6301B-2 |
| Frequency [Hz] () | 50 |
| Glass mounting () | None |
| Oil charge [L] () | 1.06 L |
| Packing format () | Single pack/pallet |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Gaz equalization () | None |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 6 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Power connections () | Spade |
| Total height [mm] () | 413 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 41 cm³ |
| UK RoHS compliance () | Yes with exemptions |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| China RoHS compliance () | Yes exceed limitations |
| Capacity of capacitor A () | 60 µF |
| Capacity of capacitor B () | 145-175 µF |
| EU RoHS exemption clause () | 7(c)-I6(a)6(a)-I6(c)7(a)8(b) |
| Product Name Description () | Scroll compressor HHP |
| UK RoHS exemption clause () | 192124121318 |
| Voltage of capacitor A [V] () | 370 V |
| Compressor power supply [V] () | 220-240/1/50 |
| Suction connection material () | - |
| Suction connection size [in] () | 3/4 in |
| Refrigerant charge [kg] [Max] () | 3.63 kg |
| Discharge connection size [in] () | 1/2 in |
| Network power supply [V/Ph/Hz] () | 220-240/1/50 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Suction connection height [mm] () | 250 mm |
| Number of starts per hour [Max] () | 12 |
| Discharge connection height [mm] () | 379 mm |
| Suction connection pipe size [in] () | 3/4 in |
| Discharge connection pipe size [in] () | 1/2 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 198 V |
| High value of voltage range at 50Hz [V] () | 264 V |
| Low value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 50Hz [V] () | 240 V |
| Main winding resistance for single-phase compressors [Ohm] () | 1.02 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 1.6 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R407C, Segment usage: Heating, Compressor power supply [V]: 220-240/1/50, Packing format: Single pack/pallet
