121U8043

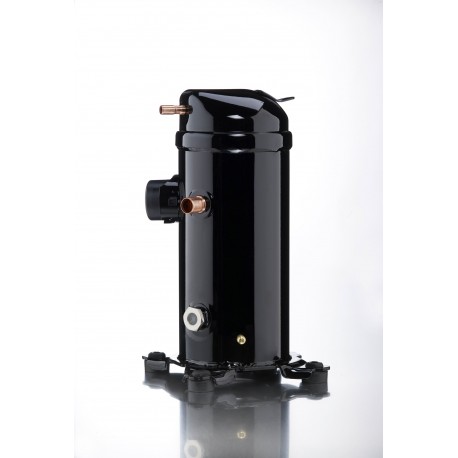

121U8043 DANFOSS REFRIGERATION Refrigerant: R134a R22 R404A R407C R507, Segment usage: Refrigeration MT, Com..
$0.00USD
3169 in stock
Key Specifications
EAN ():5702428227742
LRA ():120 A
MCC ():26 A
RLA ():16.7 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428227742 |
| LRA () | 120 A |
| MCC () | 26 A |
| RLA () | 16.7 A |
| Type () | MLZ030 |
| Phase () | 3 |
| Colour () | Black |
| Family () | MLZ |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Oil drain () | 1/4'' flare |
| Economizer () | No |
| Net weight () | 37.33 Kg |
| Technology () | Scroll |
| Description () | MLZ030T2 |
| Shipped oil () | Initial oil charge |
| Gross weight () | 40 Kg |
| Model number () | MLZ030T2LC9 |
| Refrigerants () | R134aR22R404AR407C |
| Relief valve () | 32 bar |
| Diameter [mm] () | 184 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 160HV |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration MT |
| Drawing number () | 0XR6025B-2 |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 1.57 L |
| Packing format () | Industrial pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 12 |
| SCIP dossier no. () | 9f3eb380-2376-4d7e-8e20-14d0789b1562 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Glass torque [Nm] () | 53 N-m |
| Power connections () | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 455 mm |
| Configuration code () | Single |
| Swept volume [cm3] () | 68.79 cm³ |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| Packaging weight [Kg] () | 40 kg |
| Product Name Description () | Scroll compressor MLZ |
| Compressor power supply [V] () | 200-220/3/50 208-230/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 26.2 bar |
| Suction connection size [in] () | 7/8 in |
| Winding resistance 1-2 [Ohm] () | 0.67 |
| Winding resistance 1-3 [Ohm] () | 0.67 |
| Winding resistance 2-3 [Ohm] () | 0.68 |
| Max pressure (PS) - high side () | 31.1 bar |
| Refrigerant charge [kg] [Max] () | 5.44 kg |
| Discharge connection size [in] () | 1/2 in |
| Network power supply [V/Ph/Hz] () | 200-230/3/50 208-230/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 280 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Di-isodecyl phthalate (DIDP) (CAS no. 26761-40-0)Diisononyl phthalate (DINP) (CAS no. 28553-12-0) |
| Discharge connection height [mm] () | 422 mm |
| Suction connection pipe size [in] () | 7/8 in |
| Discharge connection pipe size [in] () | 1/2 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 180 V |
| Low value of voltage range at 60Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 242 V |
| High value of voltage range at 60Hz [V] () | 253 V |
| Low value of nominal voltage at 50Hz [V] () | 200 V |
| Low value of nominal voltage at 60Hz [V] () | 208 V |
| High value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 60Hz [V] () | 230 V |
Product Description
Scroll compressor, MLZ030T2LC9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A; R407C; R134a; R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 200-220/3/50 208-230/3/60, Packing format: Industrial pack
