121U8005

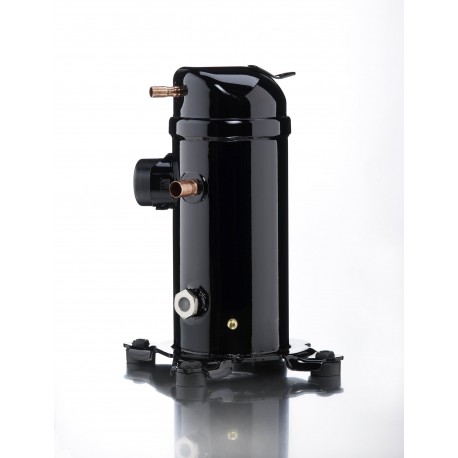

121U8005 DANFOSS REFRIGERATION Scroll compressor, MLZ021T4LP9
$0.00USD
3836 in stock
Key Specifications
EAN ():5702428249973
LRA ():45 A
MCC ():9.5 A
RLA ():6.1 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428249973 |
| LRA () | 45 A |
| MCC () | 9.5 A |
| RLA () | 6.1 A |
| Type () | MLZ021 |
| Phase () | 3 |
| Colour () | Black |
| Family () | MLZ |
| Volume () | 45.6 Liter |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Oil drain () | 1/4'' flare |
| Economizer () | No |
| Net weight () | 29.5 Kg |
| Technology () | Scroll |
| Description () | MLZ021T4 |
| Shipped oil () | Initial oil charge |
| Gross weight () | 32.17 Kg |
| Model number () | MLZ021T4LP9 |
| Refrigerants () | R134aR22R404AR407AR407CR407F |
| Relief valve () | 32 bar |
| Diameter [mm] () | 165 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 160HV |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration MT |
| Drawing number () | 0XC6300B-1 |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 1.06 L |
| Packing format () | Industrial pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 12 |
| SCIP dossier no. () | 9f3eb380-2376-4d7e-8e20-14d0789b1562 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Glass torque [Nm] () | 53 N-m |
| Power connections () | Spade |
| Total height [mm] () | 412 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 46.21 cm³ |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| Packaging weight [Kg] () | 33 kg |
| Product Name Description () | Scroll compressor MLZ |
| Compressor power supply [V] () | 380-415/3/50 460/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 26.2 bar |
| Suction connection size [in] () | 3/4 in |
| Winding resistance 1-2 [Ohm] () | 4.66 |
| Winding resistance 1-3 [Ohm] () | 3.42 |
| Winding resistance 2-3 [Ohm] () | 4.66 |
| Max pressure (PS) - high side () | 31.1 bar |
| Refrigerant charge [kg] [Max] () | 3.63 kg |
| Discharge connection size [in] () | 1/2 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 250 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Di-isodecyl phthalate (DIDP) (CAS no. 26761-40-0)Diisononyl phthalate (DINP) (CAS no. 28553-12-0) |
| Discharge connection height [mm] () | 379 mm |
| Suction connection pipe size [in] () | 3/4 in |
| Discharge connection pipe size [in] () | 1/2 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 340 V |
| Low value of voltage range at 60Hz [V] () | 414 V |
| High value of voltage range at 50Hz [V] () | 460 V |
| High value of voltage range at 60Hz [V] () | 506 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 460 V |
| High value of nominal voltage at 50Hz [V] () | 400 V |
| High value of nominal voltage at 60Hz [V] () | 460 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A; R407C; R407A; R134a; R407F; R22, Segment usage: Refrigeration MT, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Industrial pack
