In Stock Hot Product
121L9507

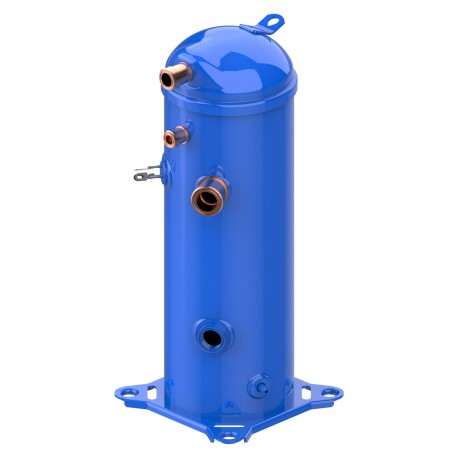

121L9507 DANFOSS REFRIGERATION LLZ024T2LQ9 COMPRESSOR, EURO M-PAK, MTG
$0.00USD
4886 in stock
Key Specifications
EAN ():5702428584722
LRA ():190 A
MCC ():40 A
RLA ():25.6 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428584722 |
| LRA () | 190 A |
| MCC () | 40 A |
| RLA () | 25.6 A |
| Type () | LLZ024 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | LLZ |
| Volume () | 0.05 Cubic.mtr |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Oil drain () | None |
| Economizer () | Yes |
| Net weight () | 46 Kg |
| Technology () | Scroll |
| Width [mm] () | 232 mm |
| Description () | LLZ024T2 |
| Length [mm] () | 232 mm |
| Shipped oil () | Initial oil charge |
| Gross weight () | 49.3 Kg |
| Model number () | LLZ024T2LQ9 |
| Refrigerants () | R404A |
| Diameter [mm] () | 184 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 160HV |
| Product group () | Hermetic compressors |
| Segment usage () | Refrigeration LT |
| Drawing number () | 0SR7510D-1 |
| Fitting remark () | Rotolock connection kit for suction, economiser and discharge fittings with seals, nuts and sleeves. |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 2.51 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Rotolock |
| Capacity control () | Fixed speed |
| Fitting standard () | Rotolock |
| Liquid injection () | Yes |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 1 |
| SCIP dossier no. () | df558db8-e518-4a4c-a654-f7f2b8bda810 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Glass torque [Nm] () | 53 N-m |
| Power connections () | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 540 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 120.2 cm³ |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| Height economiser [mm] () | 421.7 mm |
| Liquid injection valve () | Sporlan Y1037-1/2-230-3/8ODFX3/8ODF |
| Product Name Description () | Scroll compressor LLZ |
| Compressor power supply [V] () | 200-220/3/50 208-230/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 25.4 bar |
| Suction connection size [in] () | 1 3/4 in |
| Max pressure (PS) - high side () | 28.5 bar |
| Refrigerant charge [kg] [Max] () | 7.26 kg |
| Discharge connection size [in] () | 1 1/4 in |
| Network power supply [V/Ph/Hz] () | 200-230/3/50 208-230/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 349 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 513 mm |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 180 V |
| Low value of voltage range at 60Hz [V] () | 187 V |
| High value of voltage range at 50Hz [V] () | 242 V |
| High value of voltage range at 60Hz [V] () | 253 V |
| Low value of nominal voltage at 50Hz [V] () | 200 V |
| Low value of nominal voltage at 60Hz [V] () | 208 V |
| High value of nominal voltage at 50Hz [V] () | 220 V |
| High value of nominal voltage at 60Hz [V] () | 230 V |
Product Description
Scroll compressor, LLZ024T2LQ9
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R404A, Segment usage: Refrigeration LT, Compressor power supply [V]: 200-220/3/50 208-230/3/60, Packing format: Single pack
