120U2992

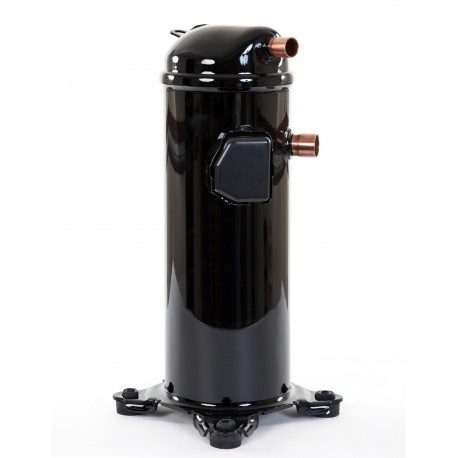

120U2992 DANFOSS REFRIGERATION Scroll compressor, HLJ072T9LC6
$0.00USD
4914 in stock
Key Specifications
EAN ():5702428396301
LRA ():95 A
MCC ():19 A
RLA ():12.2 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428396301 |
| LRA () | 95 A |
| MCC () | 19 A |
| RLA () | 12.2 A |
| Type () | HLJ072 |
| Phase () | 3 |
| Colour () | Black |
| Family () | HLJ |
| Volume () | 47.25 Liter |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Economizer () | No |
| Net weight () | 38.42 Kg |
| Technology () | Scroll |
| Width [mm] () | 239 mm |
| Description () | HLJ072T9 |
| Length [mm] () | 239 mm |
| Shipped oil () | Initial oil charge |
| Gross weight () | 42.42 Kg |
| Model number () | HLJ072T9LC6 |
| Refrigerants () | R410A |
| Relief valve () | Yes |
| Diameter [mm] () | 184 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 320HV |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 0XR6089B-1 |
| Frequency [Hz] () | 60 |
| Glass mounting () | None |
| Oil charge [L] () | 1.57 L |
| Packing format () | Single pack/pallet |
| Viscosity [cP] () | 68 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Gaz equalization () | None |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 16 |
| SCIP dossier no. () | 22cfab5a-a26e-446d-9517-3ee5f4753699 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Power connections () | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 455 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 67.97 cm³ |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| Product Name Description () | Scroll compressor HLJ |
| Compressor power supply [V] () | 380/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 31.1 bar |
| Suction connection size [in] () | 7/8 in |
| Winding resistance 1-2 [Ohm] () | 0.58 |
| Winding resistance 1-3 [Ohm] () | 0.58 |
| Winding resistance 2-3 [Ohm] () | 0.58 |
| Max pressure (PS) - high side () | 46.1 bar |
| Refrigerant charge [kg] [Max] () | 5.44 kg |
| Discharge connection size [in] () | 1/2 in |
| Network power supply [V/Ph/Hz] () | 380-400/3/60 |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 280 mm |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 422 mm |
| Suction connection pipe size [in] () | 7/8 in |
| Discharge connection pipe size [in] () | 1/2 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 60Hz [V] () | 342 V |
| High value of voltage range at 60Hz [V] () | 418 V |
| Low value of nominal voltage at 60Hz [V] () | 380 V |
| High value of nominal voltage at 60Hz [V] () | 380 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380/3/60, Packing format: Single pack/pallet
