120U2471

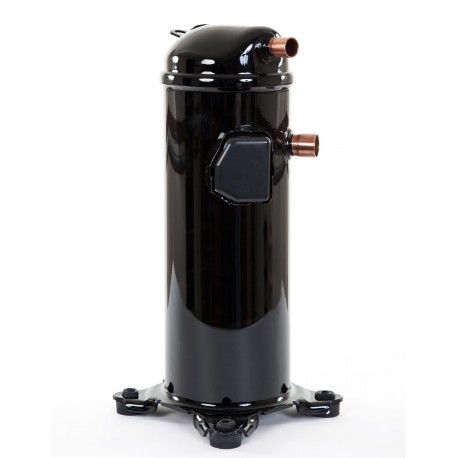

120U2471 DANFOSS REFRIGERATION Scroll compressor, HRH049U4LC8
$0.00USD
4341 in stock
Key Specifications
EAN:5702428218900
LRA:60 A
MCC:13.5 A
RLA:8.6 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428218900 |
| LRA | 60 A |
| MCC | 13.5 A |
| RLA | 8.6 A |
| Phase | 3 |
| Colour | Black |
| Oil type | PVE |
| Economizer | No |
| Net weight | 37.5 Kg |
| Technology | Scroll |
| Description | HRH049U4 |
| Refrigerant | R410A |
| Shipped oil | Initial oil charge |
| Gross weight | 40.17 Kg |
| Model number | HRH049U4LC8 |
| Product type | HRH |
| Oil reference | 320HV |
| Segment usage | Air conditioning |
| Frequency [Hz] | 50/60 |
| Oil charge [L] | 1.57 L |
| Packing format | Industrial pack |
| Viscosity [cP] | 68 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Fixed speed |
| Motor protection | Internal overload protector |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Approval standard | CEUL |
| Power connections | Spade |
| Configuration code | Single |
| Swept volume [cm3] | 47.36 cm3 |
| IP protection class | IP22 |
| Shipped instructions | Installation instructions |
| Suction connection size [in] | 0.875 in |
| Winding resistance 1-2 [Ohm] | 2.59 Ohm |
| Winding resistance 1-3 [Ohm] | 2.55 Ohm |
| Winding resistance 2-3 [Ohm] | 2.54 Ohm |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Discharge connection size [in] | 0.5 in |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Nominal cooling capacity at 50Hz | 10.7 kW |
| Nominal cooling capacity at 60Hz | 14.3 kW |
| Nominal heating capacity at 50Hz | 7.2 kW |
| Compressor power supply [V/Ph/Hz] | 400/3/50 460/3/60 |
| Suction connection pipe size [in] | 0.875 in |
| Nominal cooling capacity 60 kBTU/h | 48.81 KBtu/h |
| Discharge connection pipe size [in] | 0.5 in |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 3.22 Ohm |
