In Stock Hot Product
120U2167

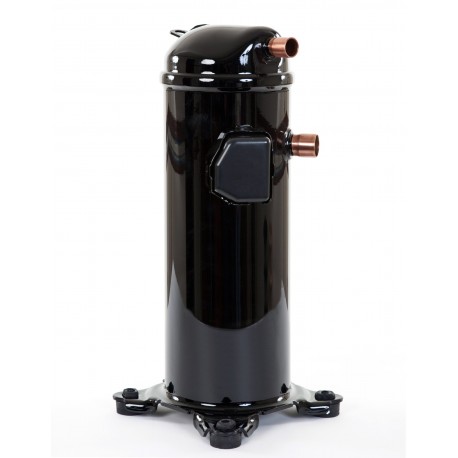

120U2167 DANFOSS REFRIGERATION HLJ072T4LC8 COMPRESSOR, M-PAK, MTG
$0.00USD
3668 in stock
Key Specifications
EAN:5702428221276
LRA:87 A
MCC:19 A
RLA:12.2 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428221276 |
| LRA | 87 A |
| MCC | 19 A |
| RLA | 12.2 A |
| Phase | 3 |
| Colour | Black |
| Oil type | PVE |
| Economizer | No |
| Net weight | 39.83 Kg |
| Technology | Scroll |
| Width [mm] | 239 mm |
| Description | HLJ072T4 |
| Length [mm] | 239 mm |
| Refrigerant | R410A |
| Shipped oil | Initial oil charge |
| Gross weight | 43.83 Kg |
| Model number | HLJ072T4LC8 |
| Product type | HLJ |
| Relief valve | Yes |
| Diameter [mm] | 184 mm |
| Gauge port HP | None |
| Gauge port LP | None |
| Oil reference | 320HV |
| Segment usage | Air conditioning |
| Drawing number | 0XR6049B-2 |
| Frequency [Hz] | 50/60 |
| Glass mounting | None |
| Oil charge [L] | 1.57 L |
| Packing format | Single pack/pallet |
| Viscosity [cP] | 68 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Fixed speed |
| Fitting standard | ODF |
| Motor protection | Internal overload protector |
| Oil equalization | 1/2' |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Approval standard | CEUL |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 455 mm |
| Configuration code | Single |
| Swept volume [cm3] | 67.97 cm3 |
| IP protection class | IP22 |
| Shipped instructions | Installation instructions |
| Suction connection size [in] | 0.875 in |
| Winding resistance 1-2 [Ohm] | 2.12 Ohm |
| Winding resistance 1-3 [Ohm] | 2.09 Ohm |
| Winding resistance 2-3 [Ohm] | 2.07 Ohm |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Discharge connection size [in] | 0.5 in |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 280 mm |
| Discharge connection height [mm] | 422 mm |
| Nominal cooling capacity at 50Hz | 15.8 kW |
| Nominal cooling capacity at 60Hz | 21.2 kW |
| Nominal heating capacity at 50Hz | 10.6 kW |
| Compressor power supply [V/Ph/Hz] | 400/3/50 460/3/60 |
| Suction connection pipe size [in] | 0.875 in |
| Nominal cooling capacity 60 kBTU/h | 72.35 KBtu/h |
| Discharge connection pipe size [in] | 0.5 in |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 414 V |
| High value of voltage range at 50Hz [V] | 457 V |
| High value of voltage range at 60Hz [V] | 506 V |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 460 V |
| High value of nominal voltage at 50Hz [V] | 415 V |
| High value of nominal voltage at 60Hz [V] | 460 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
