120U1916

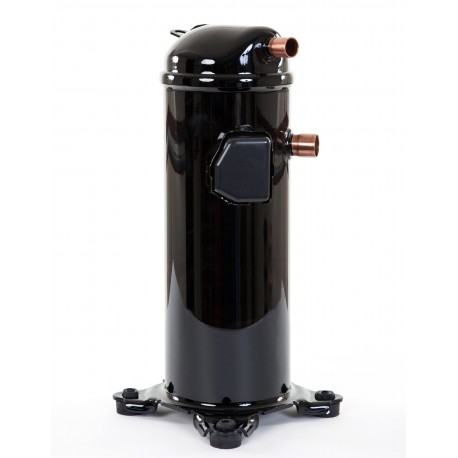

120U1916 DANFOSS REFRIGERATION Scroll compressor, HLP081T2LC6, Refrigerant: R407C, Segment usage: Air condit..
$0.00USD
3049 in stock
Key Specifications
EAN:5702428896627
LRA:190 A
MCC:33 A
RLA:21.1 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428896627 |
| LRA | 190 A |
| MCC | 33 A |
| RLA | 21.1 A |
| Phase | 3 |
| Colour | Black |
| Oil type | PVE |
| Economizer | No |
| Net weight | 40.31 Kg |
| Technology | Scroll |
| Width [mm] | 239 mm |
| Description | HLP081T2 |
| Length [mm] | 239 mm |
| Refrigerant | R407C |
| Shipped oil | Initial oil charge |
| Gross weight | 40.78 Kg |
| Model number | HLP081T2LC6 |
| Product type | HLP |
| Relief valve | Yes |
| Diameter [mm] | 184 mm |
| Gauge port HP | None |
| Gauge port LP | None |
| Oil reference | 320HV |
| Segment usage | Air conditioningHeating |
| Drawing number | 0XR6089B-2 |
| Frequency [Hz] | 50/60 |
| Glass mounting | None |
| Oil charge [L] | 1.57 L |
| Packing format | Single pack/pallet |
| Viscosity [cP] | 68 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Fixed speed |
| Fitting standard | ODF |
| Gaz equalization | None |
| Motor protection | Internal overload protector |
| Oil equalization | None |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Approval standard | CEUL |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 455 mm |
| Configuration code | Single |
| Swept volume [cm3] | 110.94 cm3 |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 26.2 bar |
| High side max pressure (Ps) | 31.1 bar |
| Suction connection size [in] | 7/8 in |
| Winding resistance 1-2 [Ohm] | 0.44 Ohm |
| Winding resistance 1-3 [Ohm] | 0.43 Ohm |
| Winding resistance 2-3 [Ohm] | 0.43 Ohm |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Discharge connection size [in] | 3/4 in |
| Rotational speed at 50Hz [rpm] | 2900 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 280 mm |
| Number of starts per hour [Max] | 12 |
| Discharge connection height [mm] | 422 mm |
| Nominal cooling capacity at 50Hz | 17.7 kW |
| Nominal cooling capacity at 60Hz | 23.7 kW |
| Nominal heating capacity at 50Hz | 11.4 kW |
| Compressor power supply [V/Ph/Hz] | 200-220/3/50 208-230/3/60 |
| Suction connection pipe size [in] | 7/8 in |
| Nominal cooling capacity 60 kBTU/h | 80.89 KBtu/h |
| Discharge connection pipe size [in] | 3/4 in |
| Low value of voltage range at 50Hz [V] | 180 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| High value of voltage range at 50Hz [V] | 242 V |
| High value of voltage range at 60Hz [V] | 253 V |
| Low value of nominal voltage at 50Hz [V] | 200 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| High value of nominal voltage at 50Hz [V] | 220 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
Product Description
Scroll compressor, HLP081T2LC6
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
