In Stock Hot Product
120U1541

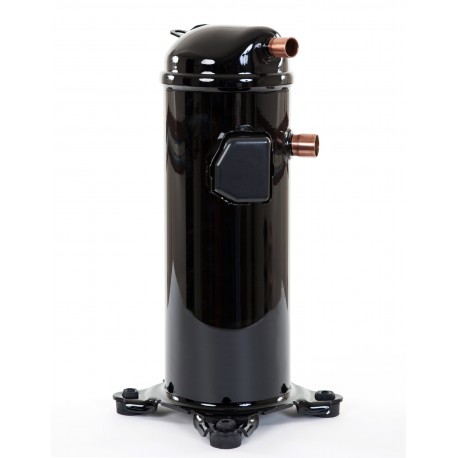

120U1541 DANFOSS REFRIGERATION Scroll compressor, HRM060T1LP6, Refrigerant: R22, Segment usage: Air conditio..
$0.00USD
4522 in stock
Key Specifications
EAN:5702428225649
LRA:160 A
MCC:45 A
RLA:28.9 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428225649 |
| LRA | 160 A |
| MCC | 45 A |
| RLA | 28.9 A |
| Phase | 1 |
| Colour | Black |
| Oil type | Alkylbenzene |
| Oil drain | None |
| Economizer | No |
| Net weight | 40.37 Kg |
| Technology | Scroll |
| Width [mm] | 239 mm |
| Description | HRM060T1 |
| Length [mm] | 239 mm |
| Refrigerant | R22 |
| Relay model | 3ARR3*25S* |
| Shipped oil | Initial oil charge |
| Gross weight | 43.43 Kg |
| Model number | HRM060T1LP6 |
| Product type | HRM |
| Relief valve | Yes |
| Diameter [mm] | 184 mm |
| Gauge port HP | None |
| Gauge port LP | None |
| Oil reference | 160ABM |
| Segment usage | Air conditioning |
| Drawing number | 0XR6002B-2 |
| Frequency [Hz] | 60 |
| Glass mounting | None |
| Oil charge [L] | 1.57 L |
| Packing format | Single pack/pallet |
| Viscosity [cP] | 32 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Fixed speed |
| Fitting standard | ODF |
| Gaz equalization | None |
| Motor protection | Internal overload protector |
| Oil equalization | None |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Approval standard | CEUL |
| Power connections | Spade |
| Total height [mm] | 455 mm |
| Configuration code | Single |
| Swept volume [cm3] | 80.95 cm3 |
| IP protection class | IP22 |
| Shipped instructions | Installation instructions |
| Capacity of capacitor A | 55 µF |
| Capacity of capacitor B | 88-108 µF |
| Low side max pressure (Ps) | 26.2 bar |
| Voltage of capacitor A [V] | 440 V |
| Voltage of capacitor B [V] | 250 V |
| High side max pressure (Ps) | 31.1 bar |
| Suction connection size [in] | 7/8 in |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Discharge connection size [in] | 1/2 in |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 280 mm |
| Discharge connection height [mm] | 422 mm |
| Nominal cooling capacity at 60Hz | 17.6 kW |
| Compressor power supply [V/Ph/Hz] | 230/1/60 |
| Suction connection pipe size [in] | 7/8 in |
| Nominal cooling capacity 60 kBTU/h | 60.07 KBtu/h |
| Discharge connection pipe size [in] | 1/2 in |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| Main winding resistance for single-phase compressors [Ohm] | 0.27 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.76 Ohm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
