120U1501

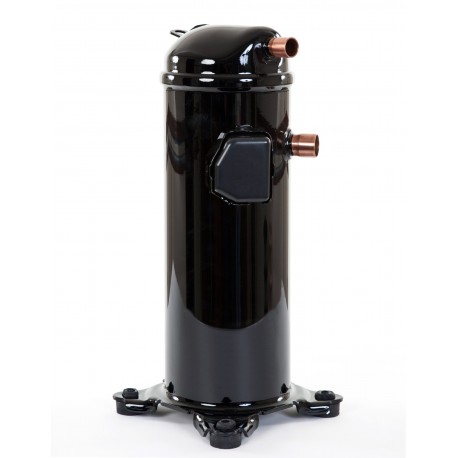

120U1501 DANFOSS REFRIGERATION Scroll compressor, HRP051T1LP6
$0.00USD
4962 in stock
Key Specifications
EAN:5702428225960
LRA:150 A
MCC:40 A
RLA:25.6 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428225960 |
| LRA | 150 A |
| MCC | 40 A |
| RLA | 25.6 A |
| Phase | 1 |
| Colour | Black |
| Oil type | PVE |
| Oil drain | None |
| Economizer | No |
| Net weight | 40 Kg |
| Technology | Scroll |
| Width [mm] | 239 mm |
| Description | HRP051T1 |
| Length [mm] | 239 mm |
| Refrigerant | R407C |
| Shipped oil | Initial oil charge |
| Gross weight | 44 Kg |
| Model number | HRP051T1LP6 |
| Product type | HRP |
| Relief valve | Yes |
| Diameter [mm] | 184 mm |
| Gauge port HP | None |
| Gauge port LP | None |
| Oil reference | 320HV |
| Segment usage | Air conditioningHeating |
| Drawing number | 0XR6002B-2 |
| Frequency [Hz] | 60 |
| Glass mounting | None |
| Oil charge [L] | 1.57 L |
| Packing format | Single pack/pallet |
| Viscosity [cP] | 68 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Fixed speed |
| Fitting standard | ODF |
| Motor protection | Internal overload protector |
| Oil equalization | None |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Approval standard | CEUL |
| Power connections | Spade |
| Total height [mm] | 455 mm |
| Configuration code | Single |
| Swept volume [cm3] | 68.83 cm3 |
| IP protection class | IP22 |
| Shipped instructions | Installation instructions |
| Capacity of capacitor A | 70 µF |
| Capacity of capacitor B | 161-193 µF |
| Voltage of capacitor A [V] | 370 V |
| Voltage of capacitor B [V] | 250 V |
| Suction connection size [in] | 0.875 in |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Discharge connection size [in] | 0.5 in |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 280 mm |
| Discharge connection height [mm] | 422 mm |
| Nominal cooling capacity at 60Hz | 14.3 kW |
| Compressor power supply [V/Ph/Hz] | 230/1/60 |
| Suction connection pipe size [in] | 0.875 in |
| Nominal cooling capacity 60 kBTU/h | 48.81 KBtu/h |
| Discharge connection pipe size [in] | 0.5 in |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 187 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 208 V |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| Main winding resistance for single-phase compressors [Ohm] | 0.32 Ohm |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 0.82 Ohm |
