120U1168

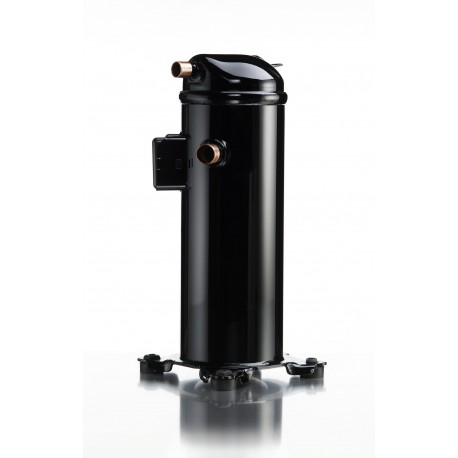

120U1168 DANFOSS REFRIGERATION Scroll compressor, HRH032U5LP6
$0.00USD
4990 in stock
Key Specifications
EAN ():5702428206525
LRA ():97 A
MCC ():25 A
RLA ():16 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428206525 |
| LRA () | 97 A |
| MCC () | 25 A |
| RLA () | 16 A |
| Type () | HRH032 |
| Phase () | 1 |
| Colour () | Black |
| Family () | HRH |
| Volume () | 29.6 Liter |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Economizer () | No |
| Net weight () | 30.58 Kilogram |
| Technology () | Scroll |
| Width [mm] () | 239 mm |
| Description () | HRH032U5 |
| Length [mm] () | 239 mm |
| Relay model () | 3ARR3*3AL* |
| Shipped oil () | Initial oil charge |
| CE evaluated () | Yes |
| Gross weight () | 33.25 Kilogram |
| Model number () | HRH032U5LP6 |
| Refrigerants () | R410A |
| UL evaluated () | Yes |
| Diameter [mm] () | 165 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 320HV |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 0XC6301B-2 |
| Frequency [Hz] () | 50 |
| Glass mounting () | None |
| Oil charge [L] () | 1.06 L |
| Packing format () | Industrial pack |
| Viscosity [cP] () | 68 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Gaz equalization () | None |
| Motor protection () | Internal overload protector |
| Oil equalization () | None |
| Packing quantity () | 16 |
| SCIP dossier no. () | 22cfab5a-a26e-446d-9517-3ee5f4753699 |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Power connections () | Spade |
| Total height [mm] () | 413 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 30.64 cm³ |
| UK RoHS compliance () | Yes with exemptions |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| China RoHS compliance () | Yes exceed limitations |
| Capacity of capacitor A () | 70 µF |
| Capacity of capacitor B () | 145-175 µF |
| EU RoHS exemption clause () | 7(c)-I6(a)6(a)-I6(c)7(a)8(b) |
| Product Name Description () | Scroll compressor HRH |
| UK RoHS exemption clause () | 192124121318 |
| Voltage of capacitor A [V] () | 370 V |
| Voltage of capacitor B [V] () | 330 V |
| Compressor power supply [V] () | 220-240/1/50 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 31.1 bar |
| Suction connection size [in] () | 3/4 in |
| Max pressure (PS) - high side () | 46.1 bar |
| Refrigerant charge [kg] [Max] () | 3.63 kg |
| Discharge connection size [in] () | 1/2 in |
| Network power supply [V/Ph/Hz] () | 220-240/1/50 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Suction connection height [mm] () | 250 mm |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 379 mm |
| Suction connection pipe size [in] () | 3/4 in |
| Discharge connection pipe size [in] () | 1/2 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 207 V |
| High value of voltage range at 50Hz [V] () | 253 V |
| Low value of nominal voltage at 50Hz [V] () | 230 V |
| High value of nominal voltage at 50Hz [V] () | 230 V |
| Main winding resistance for single-phase compressors [Ohm] () | 0.69 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] () | 1.51 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 220-240/1/50, Packing format: Industrial pack
