120U0961

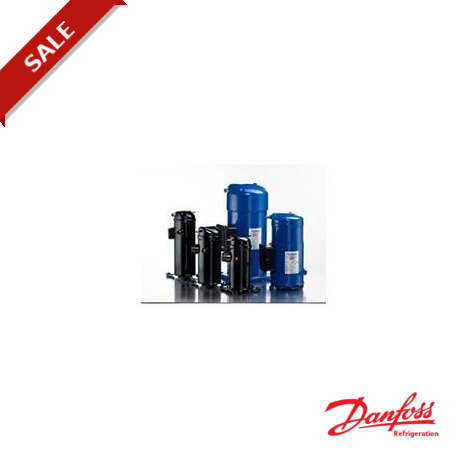

120U0961 DANFOSS REFRIGERATION HRP038T5LP6 COMPRESSOR, M-PAK, MTG
$0.00USD
3989 in stock
Key Specifications
EAN:5702428208130
LRA:97 A
MCC:25 A
RLA:16 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428208130 |
| LRA | 97 A |
| MCC | 25 A |
| RLA | 16 A |
| Phase | 1 |
| Colour | Black |
| • Ebox | 120Z5015 |
| Technique | Scroll |
| Type Code | HRP |
| • Oil 1 | 120Z5034 |
| Economizer | No |
| Net weight | 31.38 Kg |
| Refrigerant | R407C |
| Relay model | 3ARR3*3AL* |
| Shipped oil | Initial oil charge |
| • Belt 01 | 120Z0055 |
| Gross weight | 35.38 Kg |
| Model number | HRP038T5LP6 |
| Relief valve | Yes |
| Gauge port HP | None |
| Gauge port LP | None |
| Segment usage | Air conditioning; Heating |
| Drawing number | 0XC6301B-2 |
| Frequency [Hz] | 50 |
| Glass mounting | None |
| Oil charge [L] | 1.06 |
| Packing format | Single pack/pallet |
| Speed Platform | Fixed-speed |
| Viscosity [cP] | 68 |
| • Ebox cover | 118U0056 |
| • Gasket set | 8156009 |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| • Capacitor A | 120Z0051 |
| • Capacitor B | 120Z0399 |
| Capacity control | Fixed speed |
| Fitting standard | ODF |
| Motor protection | Internal overload protector |
| Oil equalization | None |
| Packing quantity | 16 |
| Shipped mounting | Mounting kit with grommets and sleeves |
| Type designation | Compressor |
| Power connections | Spade |
| • Suction angle | 8168006 |
| • Suction valve | 8168029 |
| Approval standards | CE; UL |
| Configuration code | Single |
| Swept volume [cm3] | 51.62 |
| • Mounting kit 1 | 120Z5005 |
| • Mounting kit 2 | 120Z5031 |
| • Suction gasket | 8156131 |
| • Suction sleeve | 8153008 |
| IP protection class | IP22 |
| • Acoustic hood 1 | 120Z5043 |
| • Discharge angle | 8168007 |
| • Discharge valve | 8168031 |
| Shipped instructions | Installation instructions |
| • Discharge gasket | 8156130 |
| • Discharge sleeve | 8153007 |
| • Ebox Description | Terminal box |
| • Oil 1 Description | PVE lubricant, 320HV (FVC68D), 1-litre can |
| • Solder sleeve set | 120Z0126 |
| Capacity of capacitor A | 70 |
| Capacity of capacitor B | 145-175 µF |
| • Belt 01 Description | Belt type crankcase heater, 40 W, 230 V, CE mark, UL |
| Voltage of capacitor A [V] | 370 |
| Voltage of capacitor B [V] | 330 |
| • Ebox cover Description | IP54 upgrade kit |
| • Gasket set Description | Gasket set, 1", 1-1/4", 1-3/4", OSG gaskets black and white |
| • Capacitor A Description | Run capacitor 70 µF |
| • Capacitor B Description | Start capacitor 145-175 µF |
| Suction connection size [in] | 3/4 |
| Refrigerant charge [kg] [Max] | 3.63 |
| • Suction angle Description | Angle adaptor, C04 (1-1/4" rotolock, 3/4" ODF) |
| • Suction valve Description | Rotolock valve, V04 (1-1/4" rotolock, 3/4" ODF) |
| Discharge connection size [in] | 1/2 |
| Rotational speed at 50Hz [rpm] | 2900 |
| Rotational speed at 60Hz [rpm] | 0 |
| • Mounting kit 1 Description | Mounting kit for one-scroll compressor, including 4 grommets, 4 sleeves, 4 bolts, 4 washers |
| • Mounting kit 2 Description | Mounting kit, including 1 bolt, 1 sleeve, 1 washer |
| • Suction gasket Description | Gasket, 1-1/4" |
| • Suction sleeve Description | Solder sleeve, P04 (1-1/4" rotolock, 3/4" ODF) |
| • Acoustic hood 1 Description | Acoustic hood |
| • Discharge angle Description | Angle adaptor, C06 (1" rotolock, 1/2" ODF) |
| • Discharge valve Description | Rotolock valve, V06 (1" rotolock, 1/2" ODF) |
| Nominal cooling capacity at 50Hz | 8.1 |
| Nominal heating capacity at 50Hz | 5.1 |
| • Discharge gasket Description | Gasket, 1" |
| • Discharge sleeve Description | Solder sleeve, P06 (1" rotolock, 1/2" ODF) |
| Suction connection pipe size [in] | 3/4 |
| • Solder sleeve set Description | Solder sleeve adaptor set (1-1/4" rotolock, 3/4" ODF), (1" rotolock, 1/2" ODF) |
| Discharge connection pipe size [in] | 1/2 |
| • Discharge temperature protection | 7750009 |
| Low value of voltage range at 50Hz [V] | 207 |
| Low value of voltage range at 60Hz [V] | 0 |
| High value of voltage range at 50Hz [V] | 253 |
| High value of voltage range at 60Hz [V] | 0 |
| Low value of nominal voltage at 50Hz [V] | 230 |
| Low value of nominal voltage at 60Hz [V] | 0 |
| High value of nominal voltage at 50Hz [V] | 230 |
| High value of nominal voltage at 60Hz [V] | 0 |
| • Discharge temperature protection Description | Discharge thermostat kit |
| Main winding resistance for single-phase compressors [Ohm] | 0.69 |
| Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] | 1.51 |
