120U0386

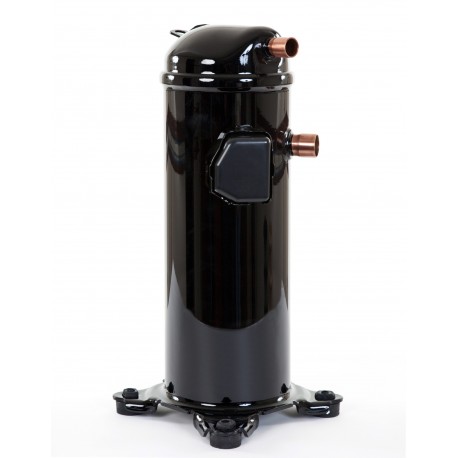

120U0386 DANFOSS REFRIGERATION Scroll compressor, HCP109T4LC8
$0.00USD
4461 in stock
Key Specifications
EAN ():5702428212656
LRA ():110 A
MCC ():24 A
RLA ():16 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428212656 |
| LRA () | 110 A |
| MCC () | 24 A |
| RLA () | 16 A |
| Type () | HCP109 |
| Phase () | 3 |
| Colour () | Black |
| Family () | HCP |
| Volume () | 40.499 Liter |
| Approval () | CEULUKCA |
| Oil type () | PVE |
| Economizer () | No |
| Net weight () | 44.58 Kg |
| Technology () | Scroll |
| Width [mm] () | 232 mm |
| Description () | HCP109T4 |
| Length [mm] () | 232 mm |
| Shipped oil () | Initial oil charge |
| Gross weight () | 48.58 Kg |
| Model number () | HCP109T4LC8 |
| Refrigerants () | R407C |
| Relief valve () | Yes |
| Diameter [mm] () | 184 mm |
| Gauge port HP () | None |
| Gauge port LP () | None |
| Oil reference () | 320HV |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 0SR6301B-4 |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | None |
| Oil charge [L] () | 2.66 L |
| Packing format () | Single pack/pallet |
| Viscosity [cP] () | 68 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| Gaz equalization () | Brazed |
| Motor protection () | Internal overload protector |
| Oil equalization () | Brazed |
| Packing quantity () | 16 |
| SCIP dossier no. () | 6987e9ab-f9b7-473c-9c29-6cb05443e8ef |
| Shipped mounting () | Mounting kit with grommets and sleeves |
| Power connections () | Screw connectors 10-32 UNF x 9.5 |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 556 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 148.79 cm³ |
| IP protection class () | IP22 |
| Shipped instructions () | Installation instructions |
| Product Name Description () | Scroll compressor HCP |
| Compressor power supply [V] () | 380-415/3/50 460/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 26.2 bar |
| Suction connection size [in] () | 1 1/8 in |
| Winding resistance 1-2 [Ohm] () | 1.33 |
| Winding resistance 1-3 [Ohm] () | 1.28 |
| Winding resistance 2-3 [Ohm] () | 1.29 |
| Max pressure (PS) - high side () | 31.1 bar |
| Refrigerant charge [kg] [Max] () | 7.26 kg |
| Discharge connection size [in] () | 7/8 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 380 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 529 mm |
| Suction connection pipe size [in] () | 1 1/8 in |
| Discharge connection pipe size [in] () | 7/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 342 V |
| Low value of voltage range at 60Hz [V] () | 414 V |
| High value of voltage range at 50Hz [V] () | 457 V |
| High value of voltage range at 60Hz [V] () | 506 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 460 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
| High value of nominal voltage at 60Hz [V] () | 460 V |
