120H2145

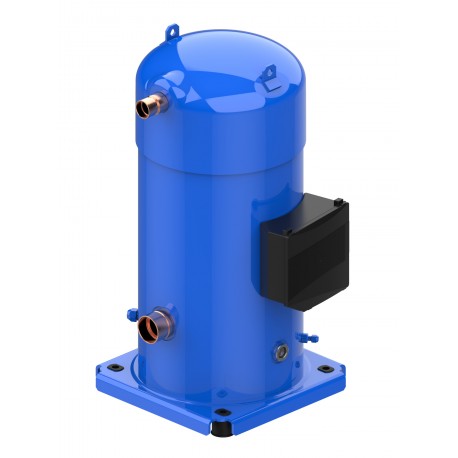

120H2145 DANFOSS REFRIGERATION Scroll compressor, SZ380A4CBF
$0.00USD
3996 in stock
Key Specifications
EAN ():5715162855225
LRA ():300 A
RLA ():56.4 A
Type ():SZ380
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5715162855225 |
| LRA () | 300 A |
| RLA () | 56.4 A |
| Type () | SZ380 |
| Phase () | 3 |
| Family () | SZ |
| Volume () | 0.921 Cubic meter |
| Approval () | CEULUKCA |
| Oil drain () | 1/4'' flare |
| Economizer () | No |
| Net weight () | 163.66 Kilogram |
| Technology () | Scroll |
| Description () | SZ380-4 |
| CE evaluated () | Yes |
| Gross weight () | 179 Kilogram |
| Model number () | SZ380A4CBF |
| Refrigerants () | R134aR407CR513A |
| UL evaluated () | Yes |
| Diameter [mm] () | 344 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160SZ |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioningHeating |
| Drawing number () | 8556093b |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 8.4 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 52 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 35.3 L |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 5.1 L |
| Motor protection () | Electronic protection module, 110/240 V |
| Oil equalization () | 1/2'' flare |
| Packing quantity () | 1 |
| GP LP torque [Nm] () | 15 N-m |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Stud M5 |
| Torque earth [Nm] () | 4 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 727 mm |
| Configuration code () | Single |
| Swept volume [cm3] () | 531.2 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Mounting torque [Nm] () | 40 N-m |
| Oil drain torque [Nm] () | 35 N-m |
| Product Name Description () | Scroll compressor SZ |
| Compressor power supply [V] () | 380-415/3/50 460/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 20 bar |
| Oil equalization torque [Nm] () | 66 N-m |
| Suction connection size [in] () | 2 1/8 in |
| Max pressure (PS) - high side () | 31.8 bar |
| Refrigerant charge [kg] [Max] () | 20 kg |
| Discharge connection size [in] () | 1 3/8 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 196 mm |
| Maximum Operating Current [MOC] () | 72.7 A |
| Number of starts per hour [Max] () | 12 |
| Discharge connection height [mm] () | 654 mm |
| Suction connection pipe size [in] () | 2 1/8 in |
| Discharge connection pipe size [in] () | 1 3/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 340 V |
| Low value of voltage range at 60Hz [V] () | 414 V |
| High value of voltage range at 50Hz [V] () | 457 V |
| High value of voltage range at 60Hz [V] () | 506 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 460 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
| High value of nominal voltage at 60Hz [V] () | 460 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] () | 0.41 Ohm |
