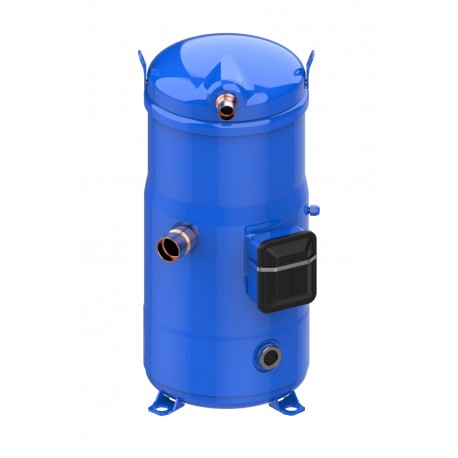

120H1222 DANFOSS REFRIGERATION Scroll compressor, DSH184A4ALB
$0.00USD
4039 in stock
Key Specifications
EAN ():5702428550413
LRA ():197 A
MCC ():38.6 A
RLA ():27.6 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428550413 |
| LRA () | 197 A |
| MCC () | 38.6 A |
| RLA () | 27.6 A |
| Type () | DSH184 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | DSH |
| Volume () | 0.23 Cubic.mtr |
| Approval () | CEULUKCA |
| Oil type () | POE |
| Economizer () | No |
| Net weight () | 71.5 Kg |
| Technology () | Scroll |
| Description () | DSH184-4 (Old) |
| Shipped oil () | Initial oil charge |
| Gross weight () | 76.12 Kg |
| Model number () | DSH184A4ALC |
| Refrigerants () | R410AR452BR454B |
| Diameter [mm] () | 243 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160SZ |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 8560234 |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 3.6 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 55 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 13.9 L |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 0.7 L |
| Liquid injection () | No |
| Motor protection () | Internal overload protector |
| Oil equalization () | 1-3/4'' Rotolock |
| Packing quantity () | 1 |
| Replacement code () | 120H1561 |
| SCIP dossier no. () | bff3e2c3-5aad-40f0-b874-7eee67aaf788 |
| Shipped mounting () | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Screw 4.8 mm |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 555 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 170.3 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Test HP [bar] [Max] () | 48.7 bar |
| Test LP [bar] [Max] () | 33.3 bar |
| Mounting torque [Nm] () | 15 N-m |
| Shipped instructions () | Installation instructions |
| Test dif [bar] [Max] () | 37 bar |
| Product Name Description () | Scroll compressor DSH |
| Compressor power supply [V] () | 380-415/3/50 460/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 33.3 bar |
| Suction connection size [in] () | 1 3/8 in |
| Max pressure (PS) - high side () | 48.7 bar |
| Refrigerant charge [kg] [Max] () | 10 kg |
| Discharge connection size [in] () | 7/8 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 300 mm |
| Maximum Operating Current [MOC] () | 36 A |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 525 mm |
| Suction connection pipe size [in] () | 1 3/8 in |
| Discharge connection pipe size [in] () | 7/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 342 V |
| Low value of voltage range at 60Hz [V] () | 414 V |
| High value of voltage range at 50Hz [V] () | 457 V |
| High value of voltage range at 60Hz [V] () | 506 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 460 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
| High value of nominal voltage at 60Hz [V] () | 460 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] () | 0.83 Ohm |
