120H0843

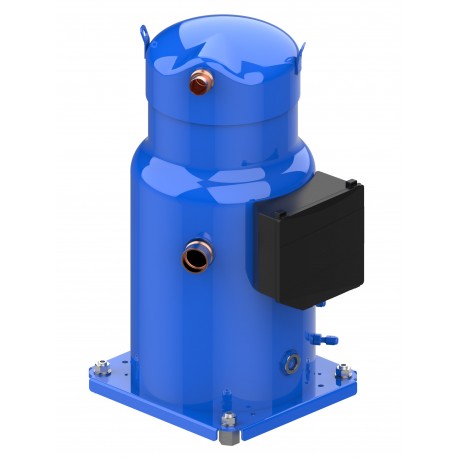

120H0843 DANFOSS REFRIGERATION Scroll compressor, SH295A9ABE
$0.00USD
4903 in stock
Key Specifications
EAN ():5702428664585
LRA ():310 A
MCC ():72 A
RLA ():51.4 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428664585 |
| LRA () | 310 A |
| MCC () | 72 A |
| RLA () | 51.4 A |
| Type () | SH295 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | SH |
| Volume () | 0.3 Cubic.mtr |
| Approval () | CEULUKCA |
| Oil drain () | 1/4'' flare |
| Economizer () | No |
| Net weight () | 111 Kg |
| Technology () | Scroll |
| Description () | SH295-9 |
| Shipped oil () | Initial oil charge |
| Gross weight () | 115.68 Kg |
| Model number () | SH295A9ABE |
| Refrigerants () | R410A |
| Relief valve () | None |
| Diameter [mm] () | 318 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160SZ |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 8556089g |
| Frequency [Hz] () | 60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 6.7 L |
| Packing format () | Single pack |
| Shipped module () | Electronic protection module mounted in terminal box |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 52 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 28.5 L |
| Capacity control () | Fixed speed |
| Factory HP [bar] () | 0 bar |
| Factory LP [bar] () | 0 bar |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 2.5 L |
| Motor protection () | Electronic protection module, 110/240 V |
| Oil equalization () | 2-1/4'' Rotolock |
| Packing quantity () | 1 |
| SCIP dossier no. () | eeb683f7-470d-4d35-aa2c-d86e918b529b |
| Shipped mounting () | Mounting kit with rigid grommets, bolts, nuts, sleeves and washers |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Stud M5 |
| Torque earth [Nm] () | 4 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 683 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 276.2 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Test HP [bar] [Max] () | 48.7 bar |
| Test LP [bar] [Max] () | 34.3 bar |
| Mounting torque [Nm] () | 21 N-m |
| Packaging width [mm] () | 400 mm |
| Shipped instructions () | Installation instructions |
| Test dif [bar] [Max] () | 37 bar |
| Packaging height [mm] () | 698 mm |
| Packaging length [mm] () | 470 mm |
| Packaging weight [Kg] () | 119 kg |
| Product Name Description () | Scroll compressor SH |
| Compressor power supply [V] () | 380/3/60 |
| Reverse rotation protection () | Electronic module |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 31.1 bar |
| Suction connection size [in] () | 1 5/8 in |
| Max pressure (PS) - high side () | 48.7 bar |
| Refrigerant charge [kg] [Max] () | 13.5 kg |
| Discharge connection size [in] () | 1 1/8 in |
| Network power supply [V/Ph/Hz] () | 380-400/3/60 |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 331 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 648 mm |
| Suction connection pipe size [in] () | 1 5/8 in |
| Discharge connection pipe size [in] () | 1 1/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 60Hz [V] () | 342 V |
| High value of voltage range at 60Hz [V] () | 418 V |
| Low value of nominal voltage at 60Hz [V] () | 380 V |
| High value of nominal voltage at 60Hz [V] () | 380 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] () | 0.36 Ohm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380/3/60, Packing format: Single pack
