120H0185

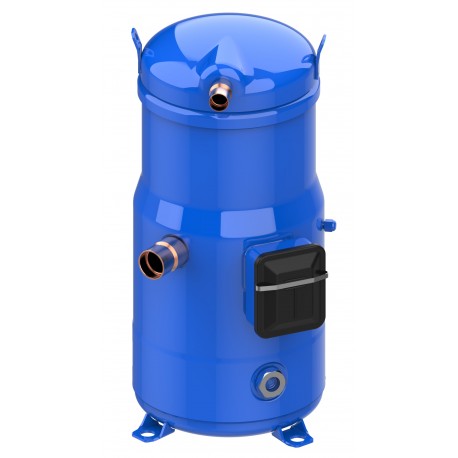

120H0185 DANFOSS REFRIGERATION Scroll compressor, SM124A4ALB
$0.00USD
3652 in stock
Key Specifications
EAN ():5702424543426
LRA ():142 A
MCC ():25 A
RLA ():17.9 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424543426 |
| LRA () | 142 A |
| MCC () | 25 A |
| RLA () | 17.9 A |
| Type () | SM124 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | SM |
| Volume () | 0.23 Cubic.mtr |
| Approval () | CEULUKCA |
| Oil type () | Mineral |
| Economizer () | No |
| Net weight () | 64 Kg |
| Technology () | Scroll |
| Description () | SM124-4 |
| Shipped oil () | Initial oil charge |
| Gross weight () | 69.16 Kg |
| Model number () | SM124A4ALB |
| Refrigerants () | R22 |
| Diameter [mm] () | 243 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160P |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 8560003 |
| Frequency [Hz] () | 50/60 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 3.3 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 63 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 13.6 L |
| Capacity control () | Fixed speed |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 0.7 L |
| Motor protection () | Internal overload protector |
| Oil equalization () | 1-3/4'' Rotolock |
| Packing quantity () | 1 |
| Shipped mounting () | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Screw 4.8 mm |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 540 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 169.5 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Test HP [bar] [Max] () | 32 bar |
| Test LP [bar] [Max] () | 25 bar |
| Mounting torque [Nm] () | 15 N-m |
| Packaging width [mm] () | 320 mm |
| Shipped instructions () | Installation instructions |
| Test dif [bar] [Max] () | 24 bar |
| Packaging height [mm] () | 580 mm |
| Packaging length [mm] () | 380 mm |
| Packaging weight [Kg] () | 65 kg |
| Product Name Description () | Scroll compressor SM |
| Compressor power supply [V] () | 380-415/3/50 460/3/60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 25 bar |
| Suction connection size [in] () | 1 3/8 in |
| Max pressure (PS) - high side () | 27.8 bar |
| Refrigerant charge [kg] [Max] () | 7.9 kg |
| Discharge connection size [in] () | 7/8 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Rotational speed at 60Hz [rpm] () | 3500 rpm |
| Suction connection height [mm] () | 278 mm |
| Maximum Operating Current [MOC] () | 23 A |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 509 mm |
| Suction connection pipe size [in] () | 1 3/8 in |
| Discharge connection pipe size [in] () | 7/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 342 V |
| Low value of voltage range at 60Hz [V] () | 414 V |
| High value of voltage range at 50Hz [V] () | 440 V |
| High value of voltage range at 60Hz [V] () | 506 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 460 V |
| High value of nominal voltage at 50Hz [V] () | 400 V |
| High value of nominal voltage at 60Hz [V] () | 460 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] () | 1.05 Ohm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 380-415/3/50 460/3/60, Packing format: Single pack
