120H0001

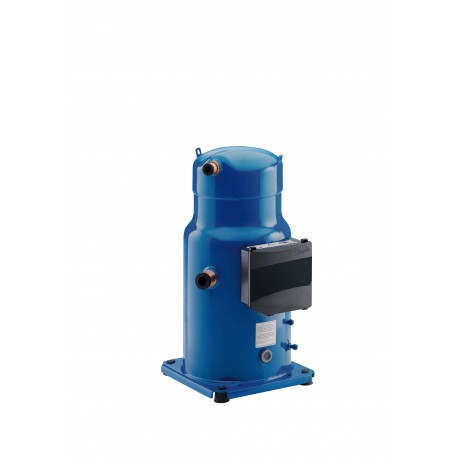

120H0001 DANFOSS REFRIGERATION Scroll compressor, SH090A3ALC
$0.00USD
3394 in stock
Key Specifications
EAN:5702428980890
LRA:203 A
MCC:43 A
RLA:30.7 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428980890 |
| LRA | 203 A |
| MCC | 43 A |
| RLA | 30.7 A |
| Phase | 3 |
| Colour | Blue |
| Oil type | POE |
| Economizer | No |
| Net weight | 59.41 Kg |
| Technology | Scroll |
| Description | SH090-3 |
| Refrigerant | R410A |
| Shipped oil | Initial oil charge |
| Gross weight | 61.91 Kg |
| Model number | SH090A3ALC |
| Product type | SH |
| Relief valve | None |
| Diameter [mm] | 243 mm |
| Gauge port HP | None |
| Gauge port LP | Schrader |
| Oil reference | 160SZ |
| Segment usage | Air conditioning |
| Drawing number | 8560004c |
| Frequency [Hz] | 60 |
| Glass mounting | Threaded |
| Oil charge [L] | 3 L |
| Packing format | Single pack |
| Viscosity [cP] | 32 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Generation code | B |
| Capacity control | Fixed speed |
| Factory HP [bar] | 0 bar |
| Factory LP [bar] | 0 bar |
| Fitting standard | ODF |
| Motor protection | Internal overload protector |
| Oil equalization | 1-3/4'' Rotolock |
| Packing quantity | 1 |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Type designation | Compressor |
| Approval standard | CEUL |
| Glass torque [Nm] | 50 N-m |
| Power connections | Screw 4.8 mm |
| Torque earth [Nm] | 2 N-m |
| Torque power [Nm] | 3 N-m |
| Total height [mm] | 482 mm |
| Configuration code | Single |
| Swept volume [cm3] | 88.4 cm3 |
| IP protection class | IP54 (with cable gland) |
| Test HP [bar] [Max] | 48.7 bar |
| Test LP [bar] [Max] | 33.3 bar |
| Mounting torque [Nm] | 15 N-m |
| Packaging width [mm] | 370 mm |
| Shipped instructions | Installation instructions |
| Test dif [bar] [Max] | 37 bar |
| Packaging height [mm] | 596 mm |
| Packaging length [mm] | 470 mm |
| Packaging weight [Kg] | 60 kg |
| Suction connection size [in] | 1.125 in |
| Refrigerant charge [kg] [Max] | 5.9 kg |
| Discharge connection size [in] | 0.875 in |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Suction connection height [mm] | 235 mm |
| Maximum Operating Current [MOC] | 38 A |
| Number of starts per hour [Max] | 12 |
| Discharge connection height [mm] | 451 mm |
| Nominal cooling capacity at 60Hz | 27.1 kW |
| Compressor power supply [V/Ph/Hz] | 200-230/3/60 |
| Suction connection pipe size [in] | 1.125 in |
| Nominal cooling capacity 60 kBTU/h | 92.49 KBtu/h |
| Discharge connection pipe size [in] | 0.875 in |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 180 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 253 V |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 200 V |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 230 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.39 Ohm |
