120G0059

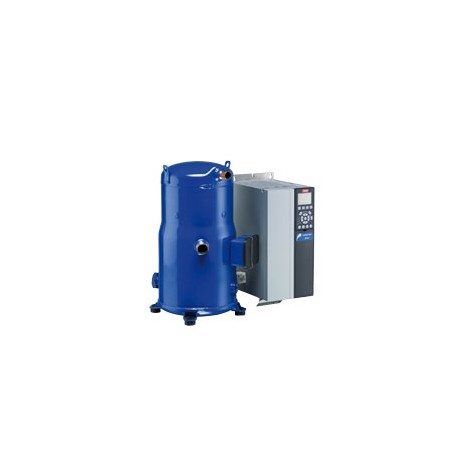

120G0059 DANFOSS REFRIGERATION Scroll compressor, Inverter, VZH044CGANA, Refrigerant: R410A, Segment usage: ..
$0.00USD
4354 in stock
Key Specifications
EAN:5702428667289
RLA:15.5 A
Phase:3
Colour:Blue
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428667289 |
| RLA | 15.5 A |
| Phase | 3 |
| Colour | Blue |
| Oil type | PVE |
| Oil drain | 1/4" flare |
| Economizer | No |
| Net weight | 26 Kg |
| Technology | Scroll |
| Description | VZH044CG |
| Refrigerant | R410A |
| Shipped oil | Initial oil charge |
| Gross weight | 27.67 Kg |
| Model number | VZH044CGANA |
| Product type | VZH |
| Relief valve | None |
| Diameter [mm] | 165 mm |
| Gauge port HP | None |
| Gauge port LP | None |
| Oil reference | 160HV |
| Segment usage | Air conditioning |
| Drawing number | 0VG8213b |
| Fitting sleeve | - |
| Frequency [Hz] | 15 - 100 |
| Glass mounting | Threaded |
| Oil charge [L] | 1.3 L |
| Packing format | Single pack |
| Viscosity [cP] | 32 cP |
| Brand technique | Scroll compressor |
| Connection type | Brazed |
| Capacity control | Inverter |
| Fitting standard | ODF |
| Motor protection | Motor protection by frequency converter |
| Oil equalization | None |
| Packing quantity | 1 |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Type designation | Compressor |
| Glass torque [Nm] | 53 N-m |
| Power connections | Spade |
| Torque earth [Nm] | 2 N-m |
| Total height [mm] | 415 mm |
| Configuration code | Single |
| Swept volume [cm3] | 44.5 cm3 |
| IP protection class | IP22 |
| Embalagem individual | *Single pack: Compressor in cardboard box |
| Mounting torque [Nm] | 11 N-m |
| Shipped instructions | Installation instructions |
| Low side max pressure (Ps) | 31.1 bar |
| High side max pressure (Ps) | 46.1 bar |
| Suction connection comments | Rubber plug |
| Suction connection material | Copper |
| Suction connection size [in] | 3/4 in |
| Discharge connection comments | Rubber plug |
| Discharge connection material | Copper |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Suction connection angle [°] | 90 ° |
| Discharge connection size [in] | 1/2 in |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Suction connection height [mm] | 242 mm |
| Discharge connection angle [°] | 90 ° |
| Maximum Operating Current [MOC] | 17.8A |
| Number of starts per hour [Max] | 12 |
| Discharge connection height [mm] | 371 mm |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Compressor power supply [V/Ph/Hz] | 380-480/3/50-60 |
| Suction connection pipe size [in] | 3/4 in |
| Nominal cooling capacity 60 kBTU/h | 48.12 KBtu/h |
| Discharge connection pipe size [in] | 1/2 in |
| Low value of voltage range at 50Hz [V] | 342 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| High value of voltage range at 50Hz [V] | 528 V |
| High value of voltage range at 60Hz [V] | 528 V |
| Low value of nominal voltage at 50Hz [V] | 380 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| High value of nominal voltage at 50Hz [V] | 480 V |
| High value of nominal voltage at 60Hz [V] | 480 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
