120G0003

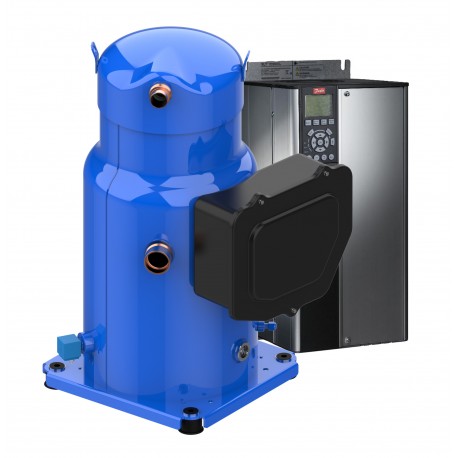

120G0003 DANFOSS REFRIGERATION Scroll compressor, Inverter, VSH170AGANA, Refrigerant: R410A, Segment usage: ..
$0.00USD
3721 in stock
Key Specifications
EAN ():5702428664875
LRA ():346 A
MMT ():71.6 A
RLA ():57.3 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428664875 |
| LRA () | 346 A |
| MMT () | 71.6 A |
| RLA () | 57.3 A |
| Type () | VSH170 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | VSH |
| Volume () | 189.52 Liter |
| Approval () | CEULUKCA |
| Oil type () | POE |
| Oil drain () | 1/4'' flare |
| Economizer () | No |
| Net weight () | 110.17 Kg |
| Technology () | Scroll |
| Description () | VSH170-G |
| Shipped oil () | Initial oil charge |
| Gross weight () | 125.5 Kg |
| Model number () | VSH170AGANA |
| Refrigerants () | R410A |
| Relief valve () | None |
| Diameter [mm] () | 318 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160SZ |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 8551174b |
| Frequency [Hz] () | 30 - 90 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 6.7 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 51 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 28.7 L |
| Capacity control () | Inverter |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 2.9 L |
| Motor protection () | Motor protection by frequency converter |
| Oil equalization () | 2-1/4'' Rotolock |
| Packing quantity () | 1 |
| Shipped mounting () | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Screw 4.8 mm |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 687 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 170.2 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Test HP [bar] [Max] () | 45 bar |
| Test LP [bar] [Max] () | 30.2 bar |
| Mounting torque [Nm] () | 21 N-m |
| Shipped instructions () | Installation instructions |
| Test dif [bar] [Max] () | 37 bar |
| Oil drain torque [Nm] () | 35 N-m |
| Oil level switch port () | No |
| Product Name Description () | Scroll compressor VSH |
| Compressor power supply [V] () | 380-480/3/50-60 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 30.2 bar |
| Suction connection size [in] () | 1 5/8 in |
| Max pressure (PS) - high side () | 48.7 bar |
| Refrigerant charge [kg] [Max] () | 13.5 kg |
| Discharge connection size [in] () | 1 1/8 in |
| Network power supply [V/Ph/Hz] () | 380-415/3/50 460/3/60 |
| Rotational speed at 50Hz [rpm] () | 3000 rpm |
| Rotational speed at 60Hz [rpm] () | 3600 rpm |
| Suction connection height [mm] () | 329 mm |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 645 mm |
| Suction connection pipe size [in] () | 1 5/8 in |
| Discharge connection pipe size [in] () | 1 1/8 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 342 V |
| Low value of voltage range at 60Hz [V] () | 342 V |
| High value of voltage range at 50Hz [V] () | 528 V |
| High value of voltage range at 60Hz [V] () | 528 V |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| Low value of nominal voltage at 60Hz [V] () | 380 V |
| High value of nominal voltage at 50Hz [V] () | 480 V |
| High value of nominal voltage at 60Hz [V] () | 480 V |
Product Description
Scroll compressor, VSH170AGANA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R410A, Segment usage: Air conditioning, Compressor power supply [V]: 380-480/3/50-60, Packing format: Single pack
