114X7182

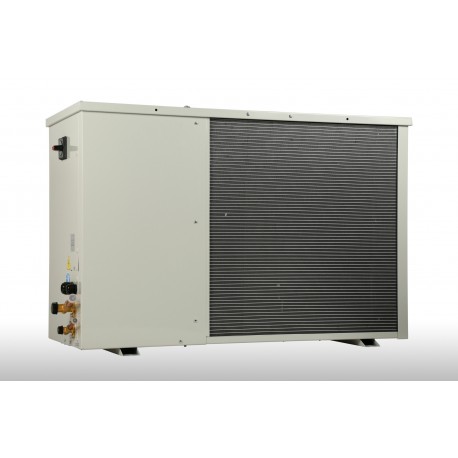

114X7182 DANFOSS REFRIGERATION Condensing unit Optyma Slim Pack, OP-LSQM048NTW09E
$0.00USD
4871 in stock
Key Specifications
EAN ():5702428561181
MCC ():4.8 A
Type ():Optyma™ Slim Pack W09
Phase ():3
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428561181 |
| MCC () | 4.8 A |
| Type () | Optyma™ Slim Pack W09 |
| Phase () | 3 |
| Family () | Optyma™ Slim Pack |
| Volume () | 544.32 Liter |
| Version () | W09 |
| Net weight () | 64.4 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 1087 mm |
| Description () | OP-LSQM048NTW09E |
| Length [mm] () | 464 mm |
| Applications () | LBP |
| Gross weight () | 82 Kg |
| Model number () | OP-LSQM048NTW09E |
| Refrigerants () | R404AR452AR507A |
| Product group () | Condensing Units |
| Segment usage () | Low Back Pressure |
| Condenser type () | D7 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 1 |
| Connection type () | Solder |
| Electrical code () | E |
| Compressor model () | NTZ048-4 |
| Voltage 50Hz [V] () | 380 V |
| Fan diameter [mm] () | 450 mm |
| Receiver approval () | CE |
| Total height [mm] () | 690 mm |
| EU RoHS compliance () | No - out of scope |
| Fan blade size [mm] () | 450 mm |
| Fan cowl/grill type () | B2 |
| Min fuse rating [A] () | 6 A |
| No. of phases (fan) () | 1 |
| Receiver volume [L] () | 3.4 L |
| Fan current @ 50Hz [A] () | 0.47 A |
| Voltage 50Hz [V] [Max] () | 415 V |
| Air flow @ 50Hz [m³/h] () | 3300 m³/h |
| Product Name Description () | Package unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 3 |
| Sound power @ 50Hz [db(A)] () | 73 dBA |
| Compressor power supply [V] () | 400/3/50 |
| Fan power output @ 50Hz [W] () | 68 W |
| Liquid line connection [in] () | 1/2 in |
| Suction connection size [in] () | 5/8 in |
| Condenser Coil Internal Volume () | 0.58 mm³ |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Fan power consumption @ 50Hz [W] () | 110 W |
| Fan voltage @ 50Hz (max) [V] [Max] () | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 230 V |
| In scope of WEEE and contain batteries () | No |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
| Sound pressure level 50Hz (@1 m distance) [db(A)] () | 62 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] () | 42 dBA |
Product Description
Optyma™ Slim Pack, OP-LSQM048NTW09E
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
