In Stock Hot Product
114X7067

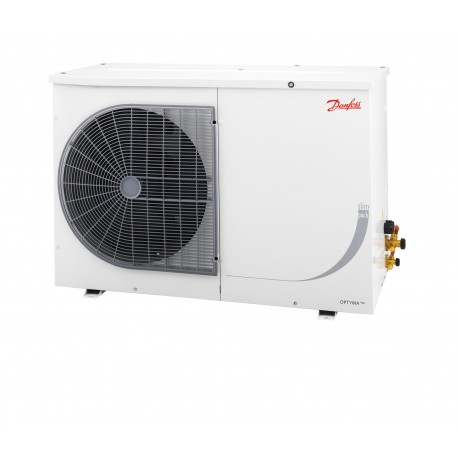

114X7067 DANFOSS REFRIGERATION OP-MSXM068MLW05G
$0.00USD
4907 in stock
Key Specifications
EAN ():5702428562300
MCC ():32 A
RLA ():20.5 A
Type ():Optyma™ Slim Pack
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428562300 |
| MCC () | 32 A |
| RLA () | 20.5 A |
| Type () | Optyma™ Slim Pack |
| Region () | Europe |
| Version () | W05 |
| Net weight () | 76 kg |
| Technology () | Scroll |
| Width [mm] () | 1105 mm |
| Description () | OP-MSXM068MLW05G |
| Length [mm] () | 464 mm |
| Refrigerant () | R134aR404AR407AR407FR448AR449AR452AR513AR507A |
| Applications () | MBP |
| Gross weight () | 95 kg |
| Model number () | OP-MSXM068MLW05G |
| Segment usage () | Medium Back Pressure |
| Condenser type () | G7 |
| Number of fans () | 1 |
| Connection type () | Solder |
| Electrical code () | G |
| Compressor model () | MLZ030T5 |
| Type designation () | Condensing Units |
| Voltage 50Hz [V] () | 220 V |
| Approval standard () | CEEACUkranian UA TR markMorocco Cم mark |
| Fan diameter [mm] () | 500 mm |
| Receiver approval () | CE |
| Total height [mm] () | 825 mm |
| Fan blade size [mm] () | 500 mm |
| Fan cowl/grill type () | B3 |
| No. of phases (fan) () | 1 |
| Overload relay type () | LRE32 |
| Receiver volume [L] () | 6.2 L |
| Fan current @ 50Hz [A] () | 0.96 A |
| Voltage 50Hz [V] [Max] () | 240 V |
| Air flow @ 50Hz [m³/h] () | 5200 m³/h |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 1 |
| Sound power @ 50Hz [db(A)] () | 74 dBA |
| Fan power output @ 50Hz [W] () | 104 W |
| Liquid line connection [in] () | 1/2 in |
| Suction connection size [in] () | 7/8 in |
| Condenser Coil Internal Volume () | 1.62 mm³ |
| Fan power consumption @ 50Hz [W] () | 190 W |
| Compressor power supply [V/Ph/Hz] () | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] () | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 230 V |
| Sound pressure level 50Hz (@1 m distance) [db(A)] () | 63 dBA |
| Sound pressure level 50Hz (@10 m distance) [db(A)] () | 43 dBA |
Product Description
Optyma™ Slim Pack, OP-MSXM068MLW05G
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Medium Back Pressure, Refrigerant: R134a; R404A; R407A; R407F; R448A; R449A; R452A; R507A; R513A, Compressor power supply [V/Ph/Hz]: 230/1/50
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
