114X5119

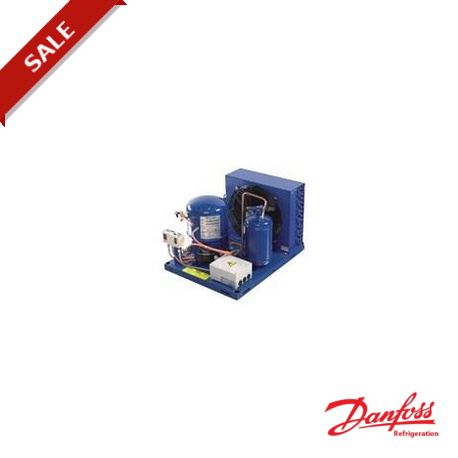

114X5119 DANFOSS REFRIGERATION OP-MGZD242MTA02E CONDENS. UNIT
$0.00USD
4957 in stock
Key Specifications
MCC:30 A
RLA:24.1 A
Region:Africa; Europe; Middle East
DLLP_CU:4
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MCC | 30 A |
| RLA | 24.1 A |
| Region | Africa; Europe; Middle East |
| DLLP_CU | 4 |
| K limit | 2224 |
| Version | A02 |
| Type Code | Optyma™ |
| Net weight | 182.00 Kg |
| Width [mm] | 1350 |
| Length [mm] | 820 |
| Refrigerant | R134a; R404A; R407A; R407C; R407F; R507 |
| Applications | MBP |
| Gross weight | 182.00 Kg |
| Model number | OP-MGZD242MTA02E |
| • Receiver | 8168183 |
| Segment usage | Medium Back Pressure |
| • Condenser | 118U8012 |
| Condenser type | N4 |
| Number of fans | 2 |
| • Compressor | MTZ144-4VM |
| Electrical code | E |
| Compressor model | MTZ144-4 |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 400 |
| • Fan assembly | 118U8023 |
| Receiver approval | CE |
| Total height [mm] | 759 |
| • Suction valve | 7968018 |
| Approval standards | CE - LVD |
| Fan blade size [mm] | 500 |
| No. of phases (fan) | 1 |
| • Discharge valve | 7968016 |
| • Crankcase heater | 7773108 |
| Fan current @ 50Hz [A] | 3 |
| Fan current @ 60Hz [A] | 3.92 |
| Voltage 50Hz [V] [Max] | 400 |
| Air flow @ 50Hz [m³/h] | 9200 |
| • Dual pressure switch | 060-539766 |
| • Receiver Description | 14L |
| • Condenser Description | N4 |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 3 |
| Sound power @ 50Hz [db(A)] | 87 |
| • Compressor Description | MTZ144-4 |
| • Compressor single pack | MTZ144-4VI |
| Liquid line connection [in] | 5/8 |
| Suction connection size [in] | 1 1/8 |
| • Fan assembly Description | D500 230/1/50-60 |
| • Suction valve Description | V02 |
| • Discharge valve Description | V05 |
| Fan power consumption @ 50Hz [W] | 680 |
| Fan power consumption @ 60Hz [W] | 890 |
| • Crankcase heater Description | Belt type crankcase heater, 75 W, 230 V, CE mark, UL |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 |
| • Dual pressure switch Description | KP 17 WB |
| • Compressor single pack Description | MTZ144-4 |
