114X5066

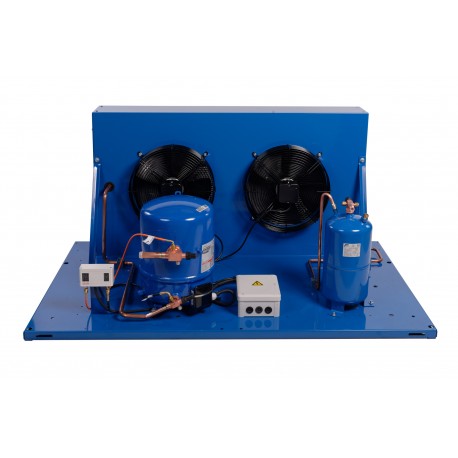

114X5066 DANFOSS REFRIGERATION OP-MGZD068MTA02E CONDENS. UNIT
$0.00USD
4022 in stock
Key Specifications
EAN ():5702428564175
MCC ():10 A
RLA ():7.1 A
Type ():Optyma™ A02 (Fin and tube)
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428564175 |
| MCC () | 10 A |
| RLA () | 7.1 A |
| Type () | Optyma™ A02 (Fin and tube) |
| Phase () | 3 |
| Family () | Optyma™ |
| Region () | AfricaEuropeMiddle East |
| Volume () | 644.48 Liter |
| Version () | A02 |
| Approval () | CEEAC |
| Net weight () | 82 Kg |
| Technology () | Reciprocating |
| Width [mm] () | 1000 mm |
| Description () | OP-MGZD068MTA02E |
| Length [mm] () | 700 mm |
| Applications () | MBP |
| Gross weight () | 87 Kg |
| Model number () | OP-MGZD068 |
| Refrigerants () | R134aR404AR407AR407CR407FR507A |
| Product group () | Condensing Units |
| Segment usage () | Medium Back Pressure |
| Condenser type () | H3 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 2 |
| Electrical code () | E |
| Compressor model () | MTZ040 |
| Voltage 50Hz [V] () | 400 V |
| Receiver approval () | CE |
| Total height [mm] () | 555 mm |
| EU RoHS compliance () | No - out of scope |
| Fan blade size [mm] () | 350 mm |
| No. of phases (fan) () | 1 |
| Fan current @ 50Hz [A] () | 0.58 A |
| Fan current @ 60Hz [A] () | 0.83 A |
| Voltage 50Hz [V] [Max] () | 400 V |
| Air flow @ 50Hz [m³/h] () | 3600 m³/h |
| Product Name Description () | Bare unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 3 |
| Sound power @ 50Hz [db(A)] () | 76 dBA |
| Compressor power supply [V] () | 400/3/50 |
| Liquid line connection [in] () | 1/2 in |
| Suction connection size [in] () | 5/8 in |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Fan power consumption @ 50Hz [W] () | 130 W |
| Fan power consumption @ 60Hz [W] () | 190 W |
| Fan voltage @ 50Hz (max) [V] [Max] () | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 230 V |
| In scope of WEEE and contain batteries () | No |
| Low value of nominal voltage at 50Hz [V] () | 400 V |
| High value of nominal voltage at 50Hz [V] () | 400 V |
Product Description
Optyma™, OP-MGZD068
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Medium Back Pressure, Refrigerants: R404A; R407C; R507A; R407A; R134a; R407F, Compressor power supply [V]: 400/3/50
