114X5063

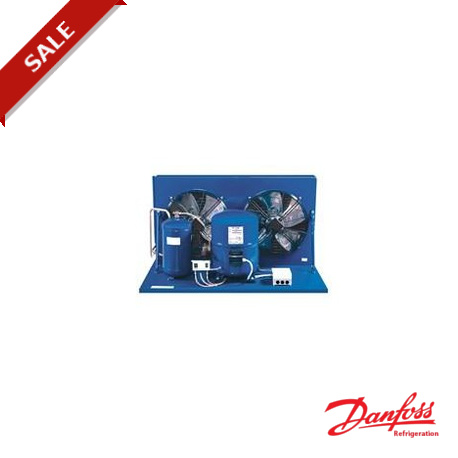

114X5063 DANFOSS REFRIGERATION OP-MGZD048MTA02E CONDENS. UNIT
$0.00USD
4974 in stock
Key Specifications
MCC:7.5 A
RLA:5.4 A
Region:Africa; Europe; Middle East
DLLP_CU:4
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MCC | 7.5 A |
| RLA | 5.4 A |
| Region | Africa; Europe; Middle East |
| DLLP_CU | 4 |
| K limit | 498 |
| Version | A02 |
| Type Code | Optyma™ |
| Net weight | 67.00 Kg |
| Width [mm] | 800 |
| Length [mm] | 600 |
| Refrigerant | R134a; R404A; R407A; R407C; R407F; R507 |
| Applications | MBP |
| Gross weight | 67.00 Kg |
| Model number | OP-MGZD048MTA02E |
| • Receiver | 8168180 |
| Segment usage | Medium Back Pressure |
| • Condenser | 8174038 |
| Condenser type | E3 |
| Number of fans | 2 |
| • Compressor | MTZ28-4VM |
| Electrical code | E |
| Compressor model | MTZ028-4 |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 400 |
| • Fan assembly | 8176043 |
| Receiver approval | CE |
| Total height [mm] | 442 |
| • Suction valve | 7968013 |
| Approval standards | CE - LVD |
| Fan blade size [mm] | 300 |
| No. of phases (fan) | 1 |
| • Discharge valve | 7968013 |
| • Crankcase heater | 7773106 |
| Fan current @ 50Hz [A] | 0.32 |
| Fan current @ 60Hz [A] | 0.4 |
| Voltage 50Hz [V] [Max] | 400 |
| Air flow @ 50Hz [m³/h] | 2600 |
| • Dual pressure switch | 060-539766 |
| • Receiver Description | 6L |
| • Condenser Description | E3 |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 3 |
| Sound power @ 50Hz [db(A)] | 75 |
| • Compressor Description | MTZ028-4 |
| • Compressor single pack | MTZ28-4VI |
| Liquid line connection [in] | 1/2 |
| Suction connection size [in] | 1/2 |
| • Fan assembly Description | D300 230/1/50-60 |
| • Suction valve Description | V06 |
| • Discharge valve Description | V06 |
| Fan power consumption @ 50Hz [W] | 72 |
| Fan power consumption @ 60Hz [W] | 90 |
| • Crankcase heater Description | Belt type crankcase heater, 54 W, 230 V, CE mark, UL |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 |
| • Dual pressure switch Description | KP 17 WB |
| • Compressor single pack Description | MTZ028-4 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
