114X5045

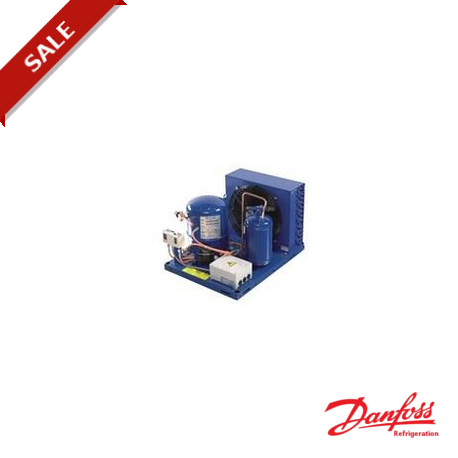

114X5045 DANFOSS REFRIGERATION OP-LCHC068NTA02G CONDENS. UNIT
$0.00USD
3196 in stock
Key Specifications
MCC:17 A
RLA:12.1 A
Region:Africa; Europe; Middle East
DLLP_CU:5
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MCC | 17 A |
| RLA | 12.1 A |
| Region | Africa; Europe; Middle East |
| DLLP_CU | 5 |
| K limit | 439 |
| Version | A02 |
| Type Code | Optyma™ |
| Net weight | 84.50 Kg |
| Width [mm] | 630 |
| Length [mm] | 650 |
| Refrigerant | R404A; R507 |
| Applications | LBP |
| Gross weight | 84.50 Kg |
| Model number | OP-LCHC068NTA02G |
| • Receiver | 8168180 |
| Segment usage | Low Back Pressure |
| • Condenser | 118U8002 |
| Condenser type | C4 |
| Number of fans | 1 |
| • Compressor | 120F0090 |
| Electrical code | G |
| Compressor model | NTZ068-5 |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 230 |
| • Fan assembly | 8176045 |
| Receiver approval | CE |
| Total height [mm] | 555 |
| • Run capacitor | 8173041 |
| • Suction valve | 7968014 |
| Approval standards | CE - LVD |
| • Starting relay | 8173022 |
| Fan blade size [mm] | 350 |
| No. of phases (fan) | 1 |
| • Discharge valve | 7968013 |
| • Crankcase heater | 7773106 |
| Volt 50Hz Nom Max [V] | 230 |
| Volt 60Hz Nom Max [V] | 230 |
| Fan current @ 50Hz [A] | 0.58 |
| Fan current @ 60Hz [A] | 0.83 |
| Voltage 50Hz [V] [Max] | 230 |
| • Starting capacitor | 8173001 |
| Air flow @ 50Hz [m³/h] | 2150 |
| • Dual pressure switch | 060-539766 |
| • Receiver Description | 6L |
| • Condenser Description | C4 |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 1 |
| Sound power @ 50Hz [db(A)] | 73 |
| • Compressor Description | NTZ068-5 |
| • Compressor single pack | 120F0088 |
| Liquid line connection [in] | 1/2 |
| Suction connection size [in] | 5/8 |
| • Fan assembly Description | D350 230/1/50-60 |
| • Run capacitor Description | Run capacitor 440V,30 µF |
| • Suction valve Description | V09 |
| • Starting relay Description | Starting relay type RVA-6AMKL/3ARR3J4A4 |
| • Discharge valve Description | V06 |
| Fan power consumption @ 50Hz [W] | 130 |
| Fan power consumption @ 60Hz [W] | 190 |
| • Crankcase heater Description | Belt type crankcase heater, 54 W, 230 V, CE mark, UL |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 |
| • Starting capacitor Description | Start capacitor 330V, 98 µF |
| • Dual pressure switch Description | KP 17 WB |
| • Compressor single pack Description | NTZ068-5 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
