114X4300

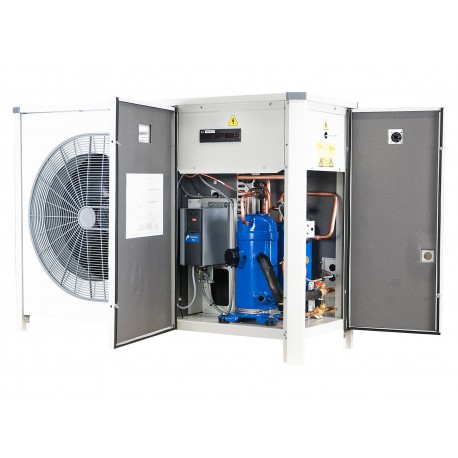

114X4300 DANFOSS REFRIGERATION Type designation: Condensing Units, Type: Optyma™ Plus INVERTER, Model number..
$0.00USD
4583 in stock
Key Specifications
EAN ():5702428564601
MCC ():8.1 A
RLA ():7 A
Type ():Optyma™ Plus INVERTER P01
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428564601 |
| MCC () | 8.1 A |
| RLA () | 7 A |
| Type () | Optyma™ Plus INVERTER P01 |
| Phase () | 3 |
| Family () | Optyma™ Plus INVERTER |
| Volume () | 1055.7 Liter |
| Version () | P01 |
| Net weight () | 124 Kg |
| Technology () | Scroll |
| Width [mm] () | 1406 mm |
| Description () | OP-MPLM028VVLP01E |
| Length [mm] () | 481 mm |
| Applications () | MBP |
| Gross weight () | 149 Kg |
| Model number () | OP-MPLM028VVLP01E |
| Refrigerants () | R404AR452AR507A |
| Product group () | Condensing Units |
| Segment usage () | Medium Back Pressure |
| Condenser type () | G7 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 1 |
| Connection type () | Solder |
| Electrical code () | E |
| Capacity control () | Inverter |
| Compressor model () | VLZ028TGNE9 |
| Voltage 50Hz [V] () | 360 V |
| Fan diameter [mm] () | 500 mm |
| Receiver approval () | CE |
| Total height [mm] () | 965 mm |
| EU RoHS compliance () | No - out of scope |
| Fan blade size [mm] () | 500 mm |
| Fan cowl/grill type () | H3 |
| Min fuse rating [A] () | 12 A |
| No. of phases (fan) () | 1 |
| Receiver volume [L] () | 6.2 L |
| Fan current @ 50Hz [A] () | 0.96 A |
| Voltage 50Hz [V] [Max] () | 415 V |
| Air flow @ 50Hz [m³/h] () | 5200 m³/h |
| Product Name Description () | Package unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 3 |
| Compressor power supply [V] () | 400/3/50 |
| Fan power output @ 50Hz [W] () | 130 W |
| Liquid line connection [in] () | 5/8 in |
| Suction connection size [in] () | 3/4 in |
| Condenser Coil Internal Volume () | 1.62 mm³ |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Fan power consumption @ 50Hz [W] () | 220 W |
| Variable speed approved frequency () | 50 Hz |
| Fan voltage @ 50Hz (max) [V] [Min] () | 230 V |
| In scope of WEEE and contain batteries () | No |
| Low value of nominal voltage at 50Hz [V] () | 360 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
Product Description
OP-MPLM028VVZP01
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Medium Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
