In Stock Hot Product
114X4229

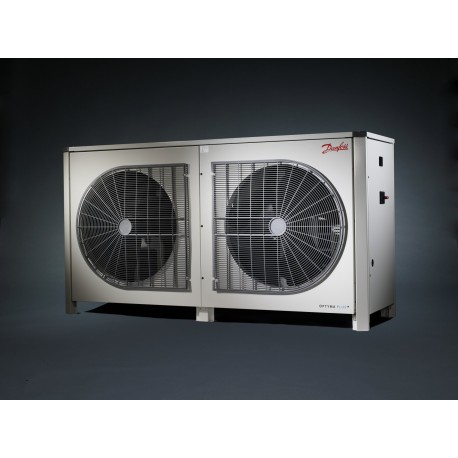

114X4229 DANFOSS REFRIGERATION OP-MPHM034GSP00G CONDENS. UNIT
$0.00USD
3694 in stock
Key Specifications
MCC:12.6 A
RLA:9 A
Region:AfricaAsiaEuropeMiddle EastPacific
Version:P00
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MCC | 12.6 A |
| RLA | 9 A |
| Region | AfricaAsiaEuropeMiddle EastPacific |
| Version | P00 |
| Net weight | 120 Kg |
| Technology | Reciprocating |
| Width [mm] | 1055 mm |
| Description | OP-MPHM034GSP00G |
| Length [mm] | 430 mm |
| Refrigerant | R404AR507 |
| Applications | MBP |
| Gross weight | 120 Kg |
| Model number | OP-MPHM034GSP00G |
| Product type | Optyma™ Plus New Generation |
| Segment usage | Medium Back Pressure |
| Condenser type | D7 |
| Number of fans | 1 |
| Electrical code | G |
| Compressor model | GS34MLX |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 220 V |
| Approval standard | CE |
| Fan diameter [mm] | 450 mm |
| Receiver approval | CE |
| Total height [mm] | 815 mm |
| Fan blade size [mm] | 450 mm |
| Fan cowl/grill type | Grill H2 |
| No. of phases (fan) | 1 |
| Receiver volume [L] | 3.4 L |
| Fan current @ 50Hz [A] | 0.47 A |
| Voltage 50Hz [V] [Max] | 240 V |
| Air flow @ 50Hz [m³/h] | 3300 m3/h |
| Suction connection type | Solder |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 1 |
| Sound power @ 50Hz [db(A)] | 67 dBA |
| Fan power output @ 50Hz [W] | 68 W |
| Liquid line connection [in] | 0.375 in |
| Liquid line connection type | Solder |
| Suction connection size [in] | 0.625 in |
| Fan power consumption @ 50Hz [W] | 110 W |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 36 dBA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
