In Stock Hot Product
114X3482

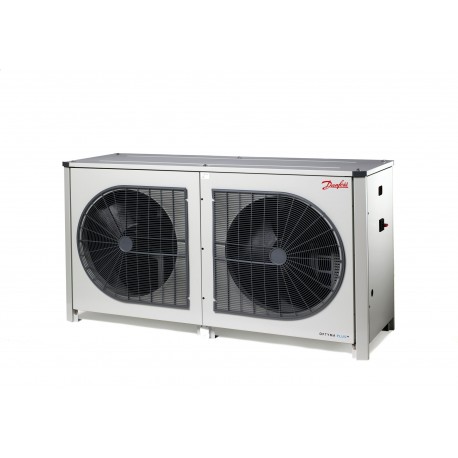

114X3482 DANFOSS REFRIGERATION OP-LPQM271LLP00E CONDENS. UNIT
$0.00USD
4745 in stock
Key Specifications
EAN:5702428564939
MCC:26 A
Region:AfricaAsiaEuropeMiddle EastPacific
Version:P00
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428564939 |
| MCC | 26 A |
| Region | AfricaAsiaEuropeMiddle EastPacific |
| Version | P00 |
| Net weight | 169 Kg |
| Technology | Scroll |
| Width [mm] | 1800 mm |
| Description | OP-LPQM271LLP00E |
| Length [mm] | 1800 mm |
| Refrigerant | R404AR452AR507 |
| Applications | LBP |
| Gross weight | 218 Kg |
| Model number | OP-LPQM271LLP00E |
| Product type | Optyma™ Plus New Generation |
| Segment usage | Low Back Pressure |
| Condenser type | J7 |
| Number of fans | 2 |
| Electrical code | E |
| Compressor model | LLZ034T4 |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 380 V |
| Approval standard | CE |
| Fan diameter [mm] | 500 mm |
| Receiver approval | CE |
| Total height [mm] | 966 mm |
| Fan blade size [mm] | 500 mm |
| Fan cowl/grill type | H4 |
| No. of phases (fan) | 1 |
| Fan current @ 50Hz [A] | 0.96 A |
| Voltage 50Hz [V] [Max] | 415 V |
| Air flow @ 50Hz [m³/h] | 9500 m3/h |
| Suction connection type | Solder |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 3 |
| Sound power @ 50Hz [db(A)] | 78 dBA |
| Fan power output @ 50Hz [W] | 130 W |
| Liquid line connection [in] | 0.75 in |
| Liquid line connection type | Solder |
| Suction connection size [in] | 1.125 in |
| Fan power consumption @ 50Hz [W] | 220 W |
| Compressor power supply [V/Ph/Hz] | 400/3/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] | 230 V |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 47 dBA |
Product Description
LPQM271LLP00E NOW USE 114X3486
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
