114X3365

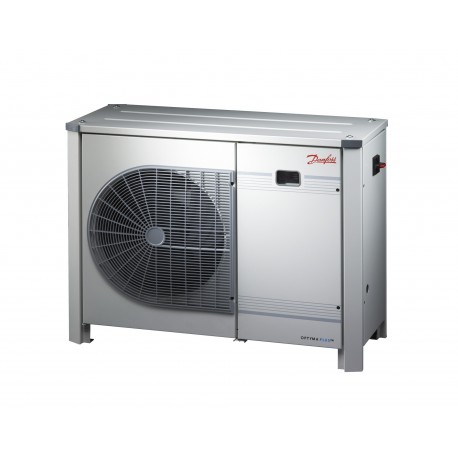

114X3365 DANFOSS REFRIGERATION OP-LPQM136NTP00E CONDENS. UNIT
$0.00USD
3012 in stock
Key Specifications
EAN ():5702428564977
MCC ():14.3 A
RLA ():10.2 A
Type ():Optyma™ Plus P00
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428564977 |
| MCC () | 14.3 A |
| RLA () | 10.2 A |
| Type () | Optyma™ Plus P00 |
| Phase () | 3 |
| Family () | Optyma™ Plus |
| Volume () | 1193.216 Liter |
| Version () | P00 |
| Approval () | CEEAC |
| Net weight () | 107 Kilogram |
| Technology () | Reciprocating |
| Width [mm] () | 1406 mm |
| Description () | OP-LPQM136NTP00E |
| Length [mm] () | 481 mm |
| Applications () | LBP |
| CE evaluated () | Yes |
| Gross weight () | 143 Kilogram |
| Model number () | OP-LPQM136NTP00E |
| Refrigerants () | R404AR452AR507A |
| Product group () | Condensing Units |
| Segment usage () | Low Back Pressure |
| Condenser type () | G7 |
| Frequency [Hz] () | 50 Hz |
| Number of fans () | 1 |
| Connection type () | Solder |
| Electrical code () | E |
| Compressor model () | NTZ136-4 |
| Replacement code () | 114X3372 |
| Voltage 50Hz [V] () | 380 V |
| Fan diameter [mm] () | 500 mm |
| Receiver approval () | CE |
| Total height [mm] () | 967 mm |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Fan blade size [mm] () | 500 mm |
| Fan cowl/grill type () | H3 |
| Min fuse rating [A] () | 16 A |
| No. of phases (fan) () | 1 |
| Receiver volume [L] () | 6.2 L |
| China RoHS compliance () | Out of scope |
| Fan current @ 50Hz [A] () | 0.96 A |
| Voltage 50Hz [V] [Max] () | 415 V |
| Air flow @ 50Hz [m³/h] () | 5200 m³/h |
| Product Name Description () | Package unit |
| Fan power supply [V/Ph/Hz] () | 230/1/50 |
| No. of phases (compressor) () | 3 |
| Sound power @ 50Hz [db(A)] () | 73 dBA |
| Compressor power supply [V] () | 400/3/50 |
| Fan power output @ 50Hz [W] () | 130 W |
| Liquid line connection [in] () | 1/2 in |
| Suction connection size [in] () | 1 1/8 in |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Fan power consumption @ 50Hz [W] () | 220 W |
| Condenser Coil Internal Volume [L] () | 1.62 mm³ |
| Fan voltage @ 50Hz (max) [V] [Max] () | 230 V |
| Fan voltage @ 50Hz (max) [V] [Min] () | 230 V |
| In scope of WEEE and contain batteries () | No |
| Low value of nominal voltage at 50Hz [V] () | 380 V |
| High value of nominal voltage at 50Hz [V] () | 415 V |
| Sound pressure level 50Hz (@10 m distance) [db(A)] () | 42 dBA |
Product Description
LPQM136NTP00E NOW USE 114X3372
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Segment usage: Low Back Pressure, Refrigerants: R404A; R507A; R452A, Compressor power supply [V]: 400/3/50
