114X2773

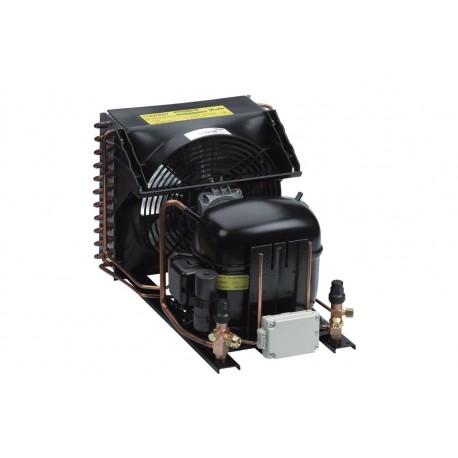

114X2773 DANFOSS REFRIGERATION OP-MCHC026GSA01G (GS26MLXT2) CONDENS. UN
$0.00USD
3743 in stock
Key Specifications
Region:Africa; Asia; Europe; Middle East; Pacific
Version:A01
Type Code:Optyma™
• Fan 1:118U0040
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Region | Africa; Asia; Europe; Middle East; Pacific |
| Version | A01 |
| Type Code | Optyma™ |
| • Fan 1 | 118U0040 |
| Net weight | 40.61 Kg |
| Technology | Reciprocating |
| Width [mm] | 430 |
| Length [mm] | 480 |
| Refrigerant | R404A; R507 |
| Applications | MBP |
| Gross weight | 41.50 Kg |
| Model number | OP-MCHC026 |
| Segment usage | Medium Back Pressure |
| • Condenser | 118U0069 |
| • Fan motor | 118U0058 |
| Condenser type | BG_7 |
| Number of fans | 1 |
| • Compressor | 107B0503 |
| Electrical code | G |
| Compressor model | GS26MLX |
| Type designation | Condensing Units |
| Voltage 50Hz [V] | 220 |
| Receiver approval | UL |
| Total height [mm] | 340 |
| Fan blade size [mm] | 300 |
| No. of phases (fan) | 1 |
| • Fan 1 Description | Fan blade |
| Fan current @ 50Hz [A] | 0.75 |
| Fan current @ 60Hz [A] | 0.55 |
| Voltage 50Hz [V] [Max] | 240 |
| Air flow @ 50Hz [m³/h] | 960 |
| • Weatherproof housing | 118U4621 |
| • Condenser Description | BG_7 |
| • Fan motor Description | Fan motor |
| Fan power supply [V/Ph/Hz] | 230/1/50 |
| No. of phases (compressor) | 1 |
| Sound power @ 50Hz [db(A)] | 70 |
| • Compressor Description | GS26MLX |
| Fan power output @ 50Hz [W] | 23 |
| Fan power output @ 60Hz [W] | 25 |
| Liquid line connection [mm] | 10 |
| Suction connection size [mm] | 16 |
| Fan power consumption @ 50Hz [W] | 86 |
| Fan power consumption @ 60Hz [W] | 80 |
| Compressor power supply [V/Ph/Hz] | 230/1/50 |
| Fan voltage @ 50Hz (max) [V] [Max] | 240 |
| Fan voltage @ 50Hz (max) [V] [Min] | 220 |
| Fan voltage @ 60Hz (max) [V] [Max] | 240 |
| Fan voltage @ 60Hz (max) [V] [Min] | 220 |
